Triangles – Congruence Theorems: CBSE Class 9 Maths knowledge organiser

Triangles – Congruence Theorems for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Congruent triangles
Triangles with all three sides and all three angles equal, so one fits exactly on the other.
SAS
Two sides and the angle between them are equal, so the triangles are congruent.
CPCT
Corresponding parts of congruent triangles are equal.

Key formulas

Congruence: SSS, SAS, ASA/AAS, RHS (not SSA, not AAA); then CPCT. △ABC≅△PQR: A↔P, B↔Q, C↔R
Isosceles: equal sides ⇔ equal opposite angles; median to the base ⟂ base and bisects the vertex angle
"If P then Q": converse "if Q then P"; one counterexample disproves

Worked example

△ABC≅△LMN with ∠A=40∘ and ∠B=75∘. Find ∠N.

N corresponds to C: ∠N=∠C=180∘−40∘−75∘=65∘.

Common mistakes

  • Using SSA (or AAA) as a congruence condition.
  • Writing the congruence in the wrong order, so CPCT pairs the wrong sides.
  • Using SAS when the angle is not between the two sides.
  • Assuming a converse is true because the original statement is true.

You should be able to…

  • Match the parts of congruent triangles, name the congruence rules and write converses and counterexamples.
  • Prove short results with SAS, SSS, ASA, AAS and RHS and use the isosceles-triangle theorems.
  • Write complete congruence proofs and explain why a triangle is rigid.
  • Explain why SSA fails, test several converses at once and repair a false converse.

Triangles – Congruence Theorems in CBSE Class 9

Triangles – Congruence Theorems is Chapter 9 of the Class 9 course, in the Geometry unit with Introduction to Euclid's Geometry: Axioms and Postulates, Lines and Angles, 4-gons (Quadrilaterals) and Circles. The unit carries 25 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 8 hours to master it.

Our Class 9 notes on it are in 7 parts: Triangles are rigid; Congruent triangles; The congruence conditions; SSA is not a congruence condition; Isosceles triangles; Propositions, converses and counterexamples; Why diagrams must be accurate. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 50 board-style questions with step marks. By sub-topic: Congruence conditions (9), Isosceles triangles (9), Propositions and converses (8), Counterexamples (8), Congruent triangles (8) and Triangles are rigid (8). By CBSE question type: 18 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 10 very short answer (2 marks each), 9 short answer (3 marks each), 4 case study (4 marks each) and 7 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 17 questions; Exam standard, 19 questions; Full marks on long answers, 5 questions; 95+ stretch (HOTS), 9 questions.

The printable sheet

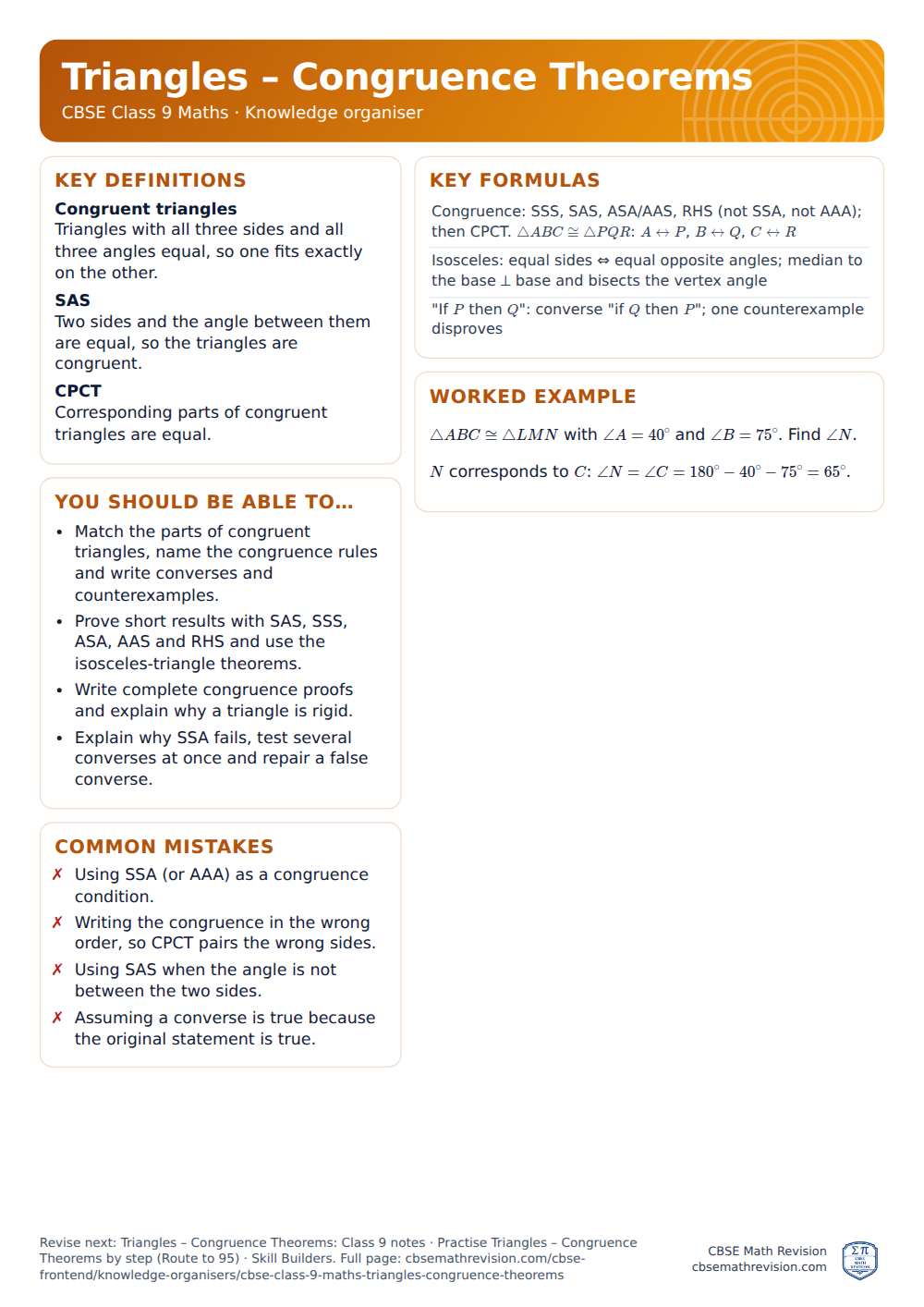

Triangles – Congruence Theorems knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Triangles – Congruence Theorems knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
