4-gons (Quadrilaterals): CBSE Class 9 Maths knowledge organiser

4-gons (Quadrilaterals) for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Parallelogram
A quadrilateral with both pairs of opposite sides parallel.
Mid-point theorem
The segment joining the mid-points of two sides of a triangle is parallel to the third side and half its length.
Diagonal
A line segment joining two opposite vertices.

Key formulas

Parallelogram: opposite sides/angles equal, diagonals bisect; rhombus diagonals ⟂; rectangle diagonals equal
Mid-point theoremDE∥BC, DE=12BC
Centroid divides each median 2 : 1AG=23AD, G=(x1+x2+x33, y1+y2+y33)
Joining mid-points of any quadrilateral gives a parallelogram, perimeter AC+BD, half the area

Worked example

In parallelogram PQRS, ∠P=(3x+10)∘ and ∠Q=(2x+20)∘. Find x.

Adjacent angles: 5x+30=180⇒x=30; ∠P=100∘, ∠Q=80∘.

Common mistakes

  • Taking adjacent angles of a parallelogram as equal: they are supplementary.
  • Assuming the diagonals of every parallelogram are equal or perpendicular.
  • Using the ratio 1:2 for the centroid from the vertex: it is 2:1.
  • Using the mid-point theorem when only one point is a mid-point: use the converse, with the parallel line.

You should be able to…

  • Use the angle and side properties of parallelograms, the mid-point theorem and the centroid ratio.
  • Find unknown sides and angles and prove short results about parallelograms and mid-points.
  • Prove the mid-point theorem and work with the mid-point quadrilateral in coordinates and in words.
  • Use the converse of the mid-point theorem in trapeziums and classify mid-point quadrilaterals.

4-gons (Quadrilaterals) in CBSE Class 9

4-gons (Quadrilaterals) is Chapter 10 of the Class 9 course, in the Geometry unit with Introduction to Euclid's Geometry: Axioms and Postulates, Lines and Angles, Triangles – Congruence Theorems and Circles. The unit carries 25 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 9 hours to master it.

Our Class 9 notes on it are in 5 parts: Parallelograms; Special parallelograms; Mid-point theorem and its converse; Centroid; The mid-point quadrilateral. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 42 board-style questions with step marks. By sub-topic: Parallelograms (9), Special parallelograms (9), Mid-point theorem (8), Centroid (8) and The mid-point quadrilateral (8). By CBSE question type: 13 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 8 very short answer (2 marks each), 8 short answer (3 marks each), 5 case study (4 marks each) and 6 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 13 questions; Exam standard, 15 questions; Full marks on long answers, 7 questions; 95+ stretch (HOTS), 7 questions.

The printable sheet

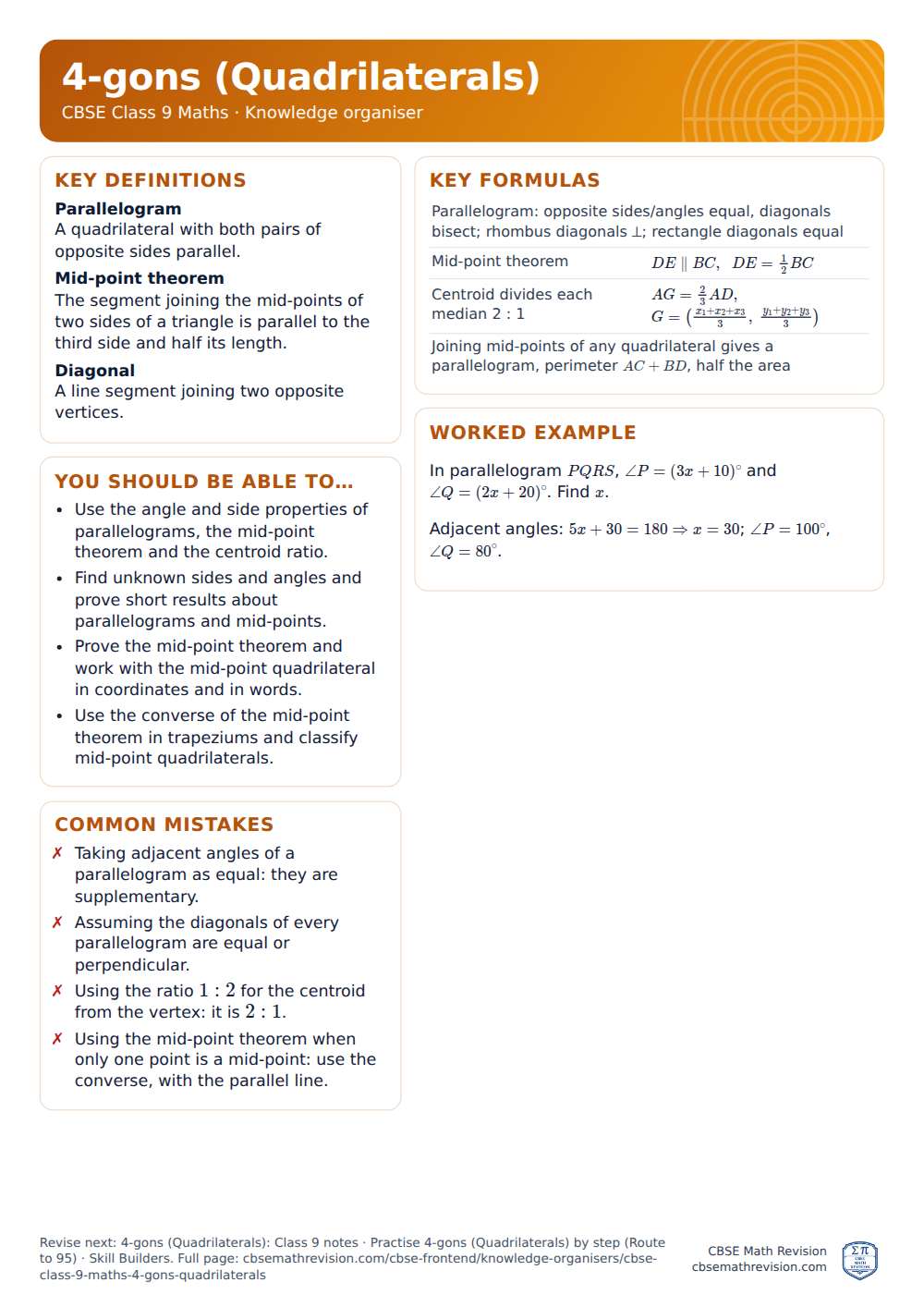

4-gons (Quadrilaterals) knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
4-gons (Quadrilaterals) knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
