Surface Area and Volume: CBSE Class 9 Maths knowledge organiser

Surface Area and Volume for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Surface area
The total area of all the faces or curved surfaces of a solid.
Volume
The space a solid takes up, in cubic units.
Slant height
The distance from the vertex of a cone to a point on the edge of its base.

Key formulas

Cuboid; cube2(lb+bh+hl), lbh; 6a2, a3
CylinderCSA=2πrh, TSA=2πr(r+h), V=πr2h
Cone, l=r2+h2CSA=πrl, TSA=πr(l+r), V=13πr2h
Sphere; hemisphere4πr2, 43πr3; 2πr2 (3πr2 total), 23πr3
1 m3=1000 litres; scale factor k: areas × k2, volumes × k3

Worked example

Find the curved surface area of a cylinder with radius 7 cm and height 10 cm (take π=227).

2×227×7×10=440 cm2.

Common mistakes

  • Using the height h instead of the slant height l in πrl, or l instead of h in the cone's volume.
  • Using the diameter as the radius.
  • Forgetting the flat face in the total surface area of a hemisphere (3πr2, not 2πr2).
  • Mixing m and cm, or cm3 and litres.

You should be able to…

  • Use the surface area and volume formulas for cuboids, cylinders, cones and spheres in one step.
  • Find a missing dimension, convert units and answer costing questions.
  • Answer multi-part questions on tents, tanks and domes, choosing the right area each time.
  • Work backwards from an area or a volume and use 'the volume stays the same' when a solid is recast.

Surface Area and Volume in CBSE Class 9

Surface Area and Volume is Chapter 13 of the Class 9 course, in the Mensuration unit with Area and Perimeter. The unit carries 14 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 9 hours to master it.

Our Class 9 notes on it are in 5 parts: Cuboid and cube; Right circular cylinder; Right circular cone; Sphere and hemisphere; Units and scaling. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 34 board-style questions with step marks. By sub-topic: Cuboid and cube (9), Cone (9), Cylinder (8) and Sphere and hemisphere (8). By CBSE question type: 12 multiple choice (1 mark each), 1 assertion-reason (1 mark), 7 very short answer (2 marks each), 7 short answer (3 marks each), 4 case study (4 marks each) and 3 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 11 questions; Exam standard, 13 questions; Full marks on long answers, 5 questions; 95+ stretch (HOTS), 5 questions.

The printable sheet

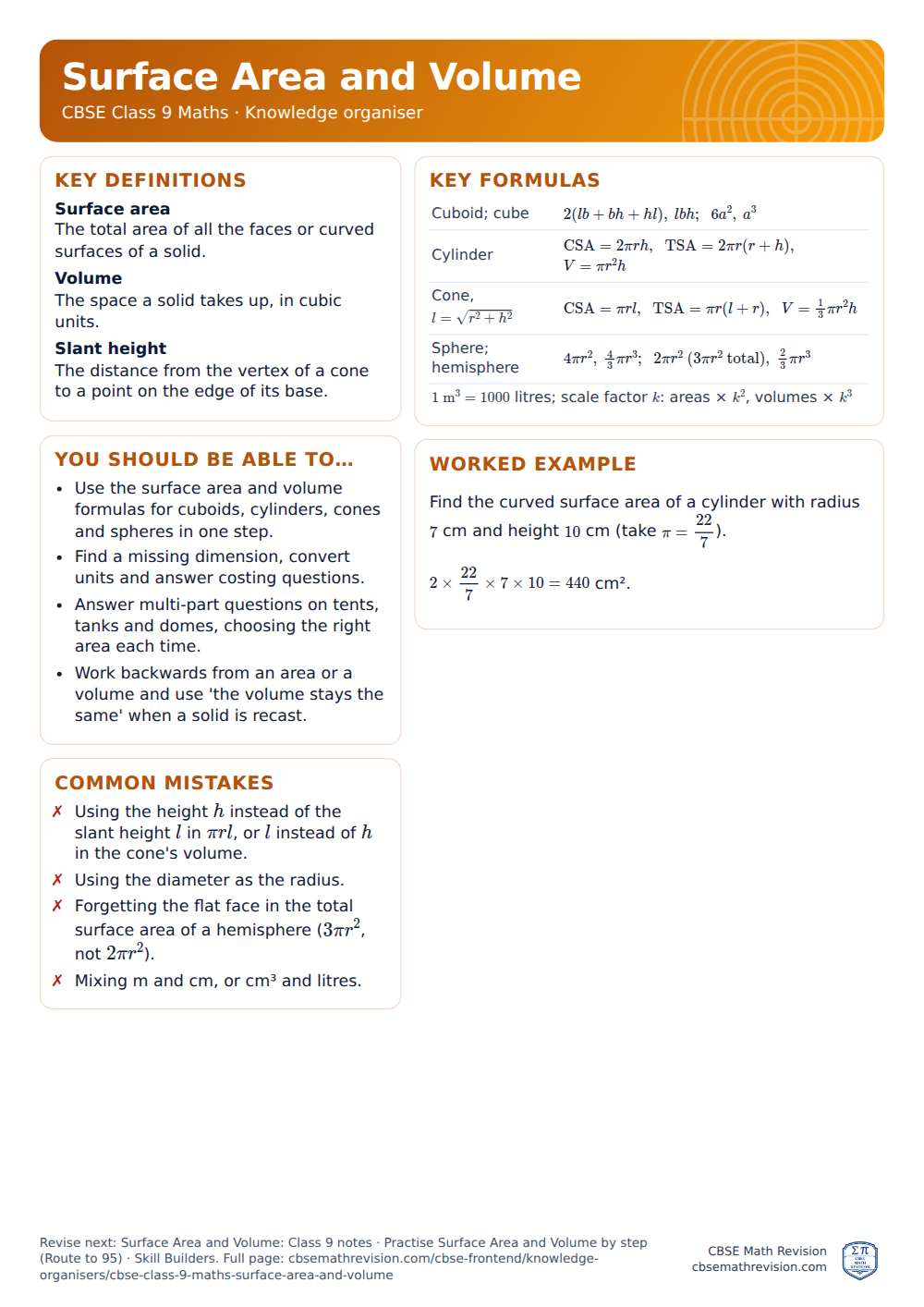

Surface Area and Volume knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Surface Area and Volume knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
