Introduction to Euclid's Geometry: Axioms and Postulates: CBSE Class 9 Maths knowledge organiser

Introduction to Euclid's Geometry: Axioms and Postulates for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Axiom
A basic fact accepted without proof and used throughout mathematics.
Postulate
A basic assumption accepted without proof that is about geometry.
Theorem
A statement proved from axioms, postulates and earlier results.

Key formulas

Axioms: things equal to the same thing are equal; equals added to (or taken from) equals give equals; the whole is greater than the part
Postulates: a line through any two points; extend a segment; a circle with any centre and radius; all right angles equal
Postulate 5: interior angles on one side <180∘ ⇒ lines meet on that side. Playfair: one parallel through a point not on a line
Measurement: C between A,B ⇒ AC+CB=AB; a segment has exactly one mid-point

Worked example

A,B,C,D lie on a line in that order, with AB=CD. Show that AC=BD.

AC=AB+BC and BD=BC+CD (measurement). Since AB=CD, adding BC to both gives AB+BC=CD+BC (Axiom 2), so AC=BD.

Common mistakes

  • Mixing up axioms (for all of mathematics) and postulates (for geometry).
  • Quoting the axiom number without saying what it states: write the axiom in words.
  • Assuming a fact from the figure ("it looks equal") instead of giving a reason.
  • Reading Postulate 5 the wrong way round: the lines meet on the side where the two interior angles add to less than 180∘.

You should be able to…

  • Tell definitions, axioms, postulates and theorems apart and state Euclid's axioms and postulates in your own words.
  • Use the axioms to find lengths on a line and justify short steps, and apply the diagonal rule.
  • Justify a construction from the postulates and use Postulate 5 to decide where two lines meet.
  • Write a full argument from the axioms and prove that a mid-point is unique.

Introduction to Euclid's Geometry: Axioms and Postulates in CBSE Class 9

Introduction to Euclid's Geometry: Axioms and Postulates is Chapter 7 of the Class 9 course, in the Geometry unit with Lines and Angles, Triangles – Congruence Theorems, 4-gons (Quadrilaterals) and Circles. The unit carries 25 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 5 hours to master it.

Our Class 9 notes on it are in 6 parts: Where geometry came from; Definitions, axioms, postulates, theorems; Euclid's axioms (in our words); Euclid's five postulates (in our words); Laying out a square with a given side; Justifying a construction from the axioms. This sheet keeps the essentials of each on one page; the notes have the reasoning, two worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 58 board-style questions with step marks. By sub-topic: Axioms of measurement (9), Parallel lines and Postulate 5 (9), Euclid's postulates (8), Definitions, axioms and postulates (8), Euclid's axioms (8), Justifying a construction (8) and Laying out a square (8). By CBSE question type: 20 multiple choice (1 mark each), 3 assertion-reason (1 mark each), 11 very short answer (2 marks each), 11 short answer (3 marks each), 6 case study (4 marks each) and 7 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 23 questions; Exam standard, 21 questions; Full marks on long answers, 9 questions; 95+ stretch (HOTS), 5 questions.

The printable sheet

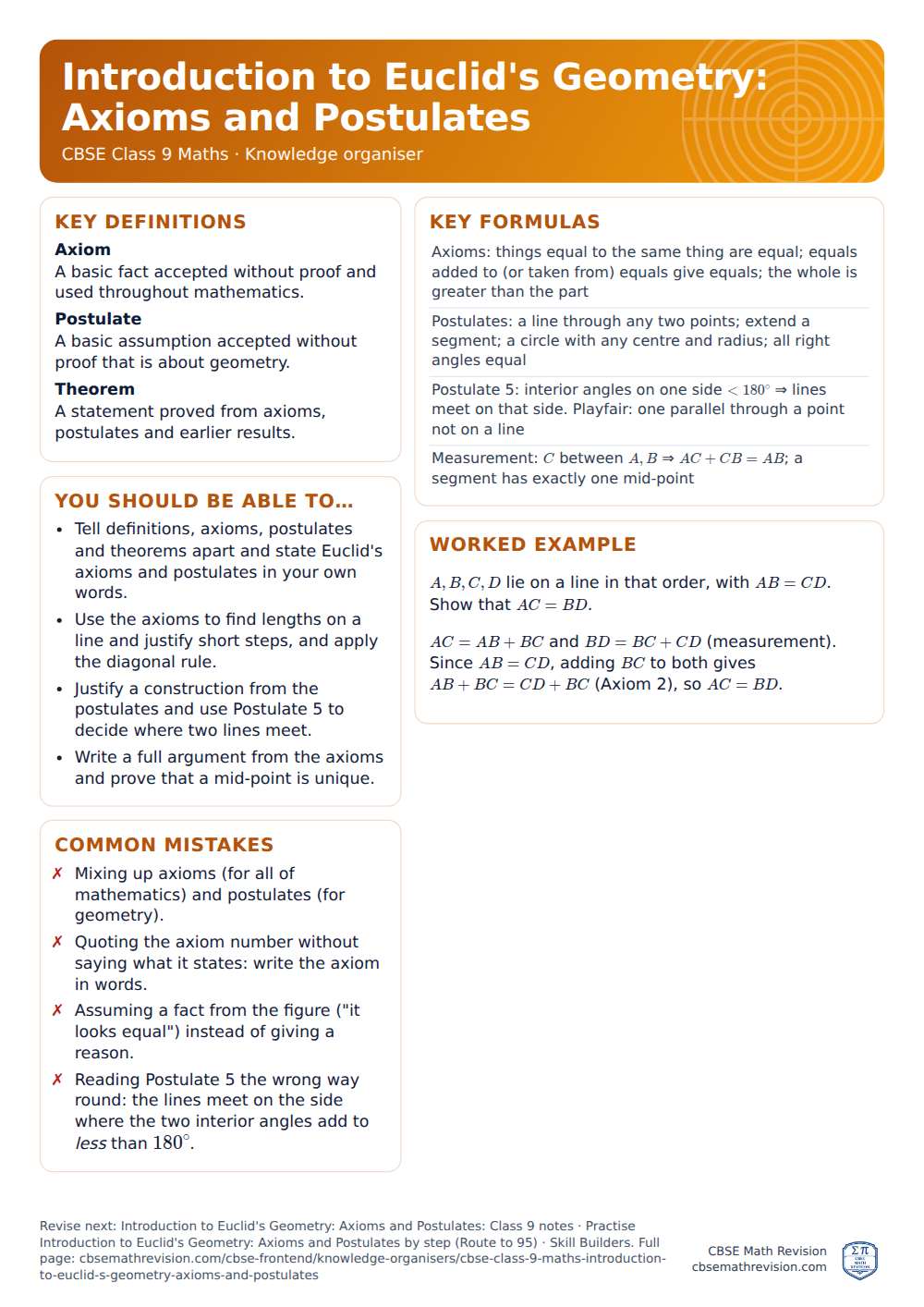

Introduction to Euclid's Geometry: Axioms and Postulates knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Introduction to Euclid's Geometry: Axioms and Postulates knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
