Circles: CBSE Class 9 Maths knowledge organiser

Circles for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Chord
A line segment joining two points on a circle.
Arc
A part of the circumference between two points.
Cyclic quadrilateral
A quadrilateral with all four vertices on one circle; its opposite angles add up to 180∘.

Key formulas

Chord 2l at distance d from the centrer2=l2+d2
⟂ from centre bisects a chord; equal chords ⇔ equidistant from centre ⇔ equal angles at centre
Angle at centre = 2 × angle on the remaining arc; angles in the same segment are equal; angle in a semicircle = 90°
Cyclic quadrilateral∠A+∠C=∠B+∠D=180∘

Worked example

A chord of a circle of radius 17 cm is 30 cm long. How far is it from the centre?

Half-chord 15, so d=172−152=64=8 cm.

Common mistakes

  • Using the whole chord instead of half of it in r2=l2+d2.
  • Halving the angle at the centre when the point is on the same arc (the minor arc) as the chord: then the angle is 180∘ minus half.
  • Adding adjacent angles of a cyclic quadrilateral to 180∘: only opposite angles are supplementary.
  • Two parallel chords: forgetting to check whether they are on the same side of the centre or on opposite sides.

You should be able to…

  • Use the chord-distance relation and the basic angle facts: angle in a semicircle, angle at the centre, cyclic quadrilateral.
  • Find chords, distances and angles in two- and three-mark questions and give the reason for each step.
  • Combine the chord theorems in longer calculations and prove results about cyclic quadrilaterals.
  • Handle parallel chords, intersecting circles and proofs such as 'a cyclic parallelogram is a rectangle'.

Circles in CBSE Class 9

Circles is Chapter 11 of the Class 9 course, in the Geometry unit with Introduction to Euclid's Geometry: Axioms and Postulates, Lines and Angles, Triangles – Congruence Theorems and 4-gons (Quadrilaterals). The unit carries 25 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 10 hours to master it.

Our Class 9 notes on it are in 5 parts: Circle, chord, arc; Chords and the centre; Distance of a chord from the centre; Angles subtended by an arc; Cyclic quadrilaterals. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 34 board-style questions with step marks. By sub-topic: Distance of a chord from the centre (9), Angles subtended by an arc (9), Cyclic quadrilaterals (8) and Chords and the centre (8). By CBSE question type: 12 multiple choice (1 mark each), 1 assertion-reason (1 mark), 7 very short answer (2 marks each), 6 short answer (3 marks each), 3 case study (4 marks each) and 5 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 11 questions; Exam standard, 12 questions; Full marks on long answers, 4 questions; 95+ stretch (HOTS), 7 questions.

The printable sheet

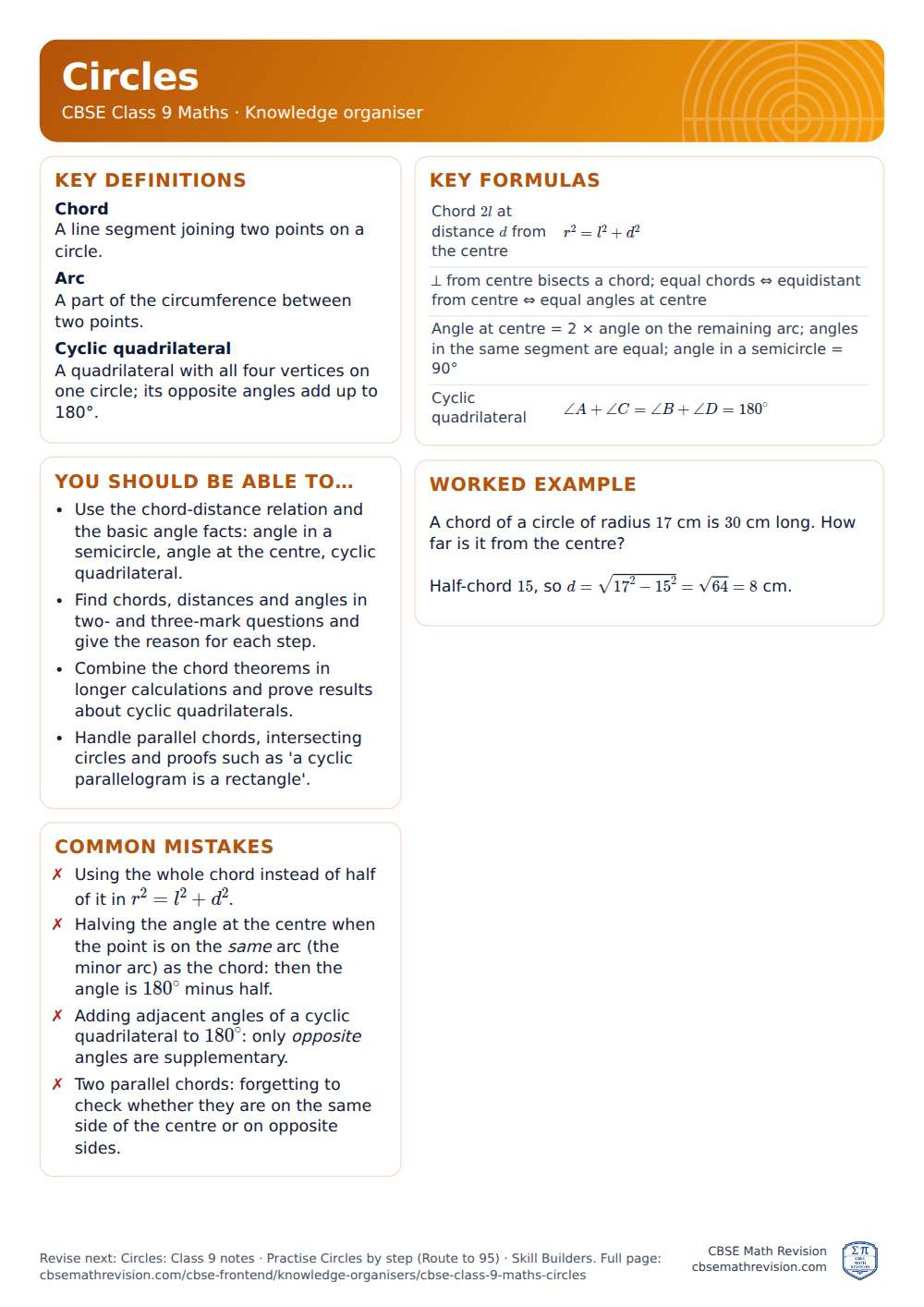

Circles knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Circles knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
