Area and Perimeter: CBSE Class 9 Maths knowledge organiser

Area and Perimeter for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Perimeter
The total length around the boundary of a shape.
Area
The amount of surface a flat shape covers, in square units.
Semi-perimeter
Half the perimeter, s=a+b+c2, used in Heron's formula.

Key formulas

Arc; sector (angle θ∘)l=θ360⋅2πr, A=θ360⋅πr2
Heron, s=a+b+c2A=s(s−a)(s−b)(s−c)
Inradius; equilateral triangleA=rs; A=34a2
Brahmagupta (cyclic quad., s=a+b+c+d2)A=(s−a)(s−b)(s−c)(s−d)
Trapezium; rhombus12(a+b)h; 12d1d2

Worked example

Find the area of a triangle with sides 13, 14 and 15 cm.

s=21; area =21×8×7×6=7056=84 cm2.

Common mistakes

  • Using the perimeter instead of the semi-perimeter s in Heron's formula.
  • Forgetting the two radii in the perimeter of a sector or the diameter in the perimeter of a semicircle.
  • Using Brahmagupta's formula for a quadrilateral that is not cyclic.
  • Mixing units (cm and m) or writing an area in cm instead of cm2.

You should be able to…

  • Use Heron's formula, circle and arc formulas and the standard area formulas in one step.
  • Find missing sides from a perimeter, an inradius from Area =rs, and areas of rhombuses and isosceles triangles.
  • Find the area of a quadrilateral in two triangles and answer multi-part questions on tracks, sectors and signboards.
  • Use Brahmagupta's formula, altitudes from areas, and composite shapes with circles.

Area and Perimeter in CBSE Class 9

Area and Perimeter is Chapter 12 of the Class 9 course, in the Mensuration unit with Surface Area and Volume. The unit carries 14 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 9 hours to master it.

Our Class 9 notes on it are in 5 parts: Perimeter and arc length; Areas of standard shapes; Heron's formula; Incircle; Brahmagupta's formula. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 43 board-style questions with step marks. By sub-topic: Heron's formula (9), Perimeter and arc length (9), Incircle (9), Areas of standard shapes (8) and Brahmagupta's formula (8). By CBSE question type: 14 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 9 very short answer (2 marks each), 8 short answer (3 marks each), 5 case study (4 marks each) and 5 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 14 questions; Exam standard, 16 questions; Full marks on long answers, 7 questions; 95+ stretch (HOTS), 6 questions.

The printable sheet

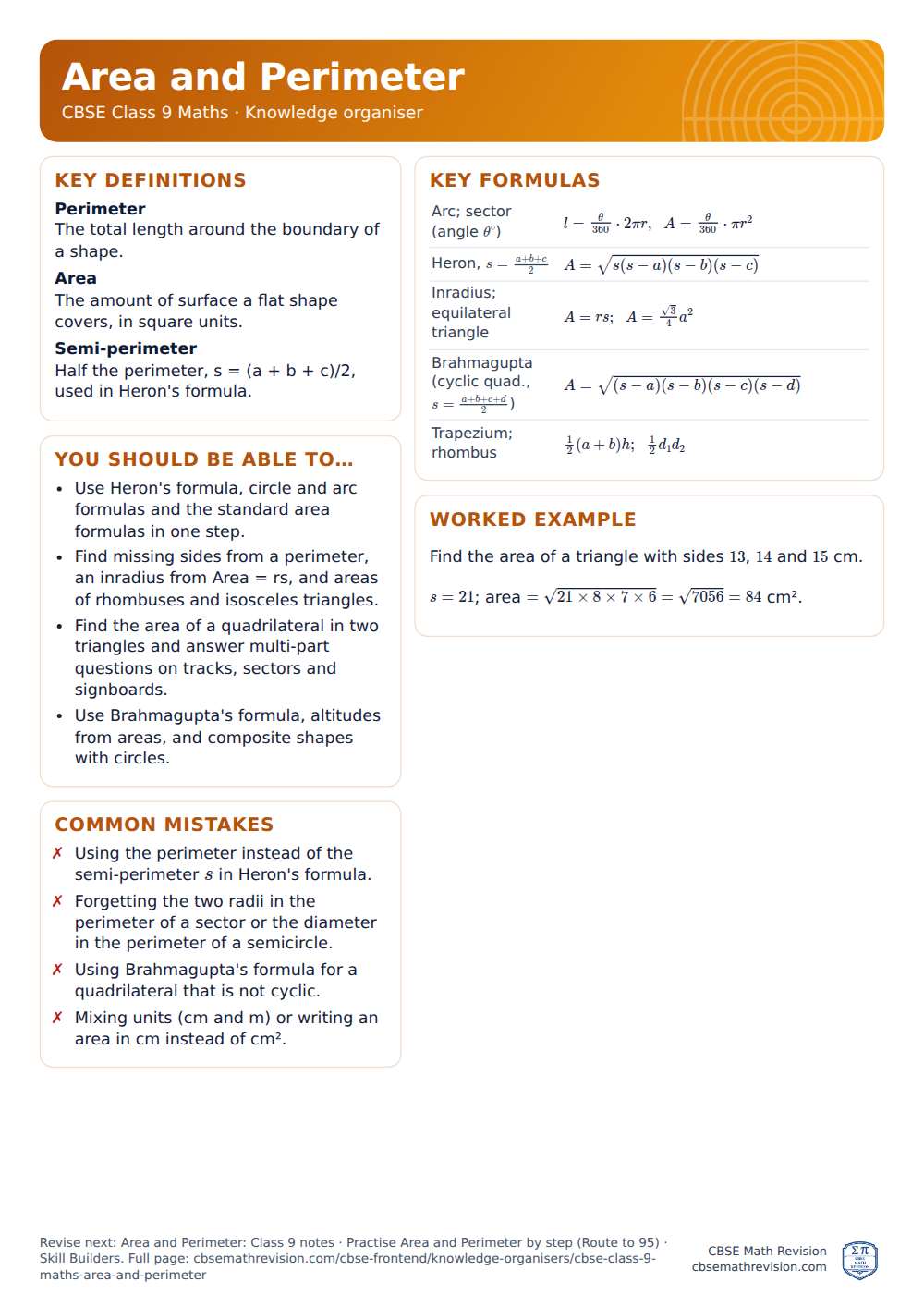

Area and Perimeter knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Area and Perimeter knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
