Lines and Angles: CBSE Class 9 Maths knowledge organiser

Lines and Angles for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Complementary angles
Two angles that add up to 90∘.
Supplementary angles
Two angles that add up to 180∘.
Transversal
A line that crosses two or more lines; with parallel lines it makes equal corresponding and alternate angles.

Key formulas

Linear pair sums to 180°; vertically opposite angles are equal; reflex angle of θ is 360∘−θ
Parallel lines: corresponding and alternate angles equal, co-interior angles sum to 180° (and conversely); l∥m, m∥n⇒l∥n
Angle sum 180°; exterior angle = sum of the two interior opposite angles; at least two angles of a triangle are acute

Worked example

Lines AB and CD meet at O, and ∠AOC=48∘. Find ∠BOD, ∠AOD and ∠BOC.

∠BOD=48∘ (vertically opposite); ∠AOD=180∘−48∘=132∘ (linear pair); ∠BOC=132∘ (vertically opposite).

Common mistakes

  • Calling co-interior angles equal: they are supplementary.
  • Using parallel-line facts when the lines are not given as parallel.
  • Taking the reflex angle of θ as 180∘+θ instead of 360∘−θ.
  • Writing angle facts without the reason in brackets.

You should be able to…

  • Classify angles and use linear pairs, vertically opposite angles and parallel-line angle facts.
  • Find unknown angles with reasons and prove the basic theorems on intersecting lines.
  • Write complete proofs with parallel lines and the angles of a triangle.
  • Argue by contradiction about the angles of a triangle and solve multi-step angle problems.

Lines and Angles in CBSE Class 9

Lines and Angles is Chapter 8 of the Class 9 course, in the Geometry unit with Introduction to Euclid's Geometry: Axioms and Postulates, Triangles – Congruence Theorems, 4-gons (Quadrilaterals) and Circles. The unit carries 25 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 7 hours to master it.

Our Class 9 notes on it are in 6 parts: Rays and angles; Pairs of angles; Intersecting lines; Proof by contradiction; Parallel lines and a transversal; Angles of a triangle. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 34 board-style questions with step marks. By sub-topic: Parallel lines and a transversal (9), Angles of a triangle (9), Rays and angles (8) and Intersecting lines (8). By CBSE question type: 12 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 6 very short answer (2 marks each), 6 short answer (3 marks each), 4 case study (4 marks each) and 4 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 13 questions; Exam standard, 12 questions; Full marks on long answers, 6 questions; 95+ stretch (HOTS), 3 questions.

The printable sheet

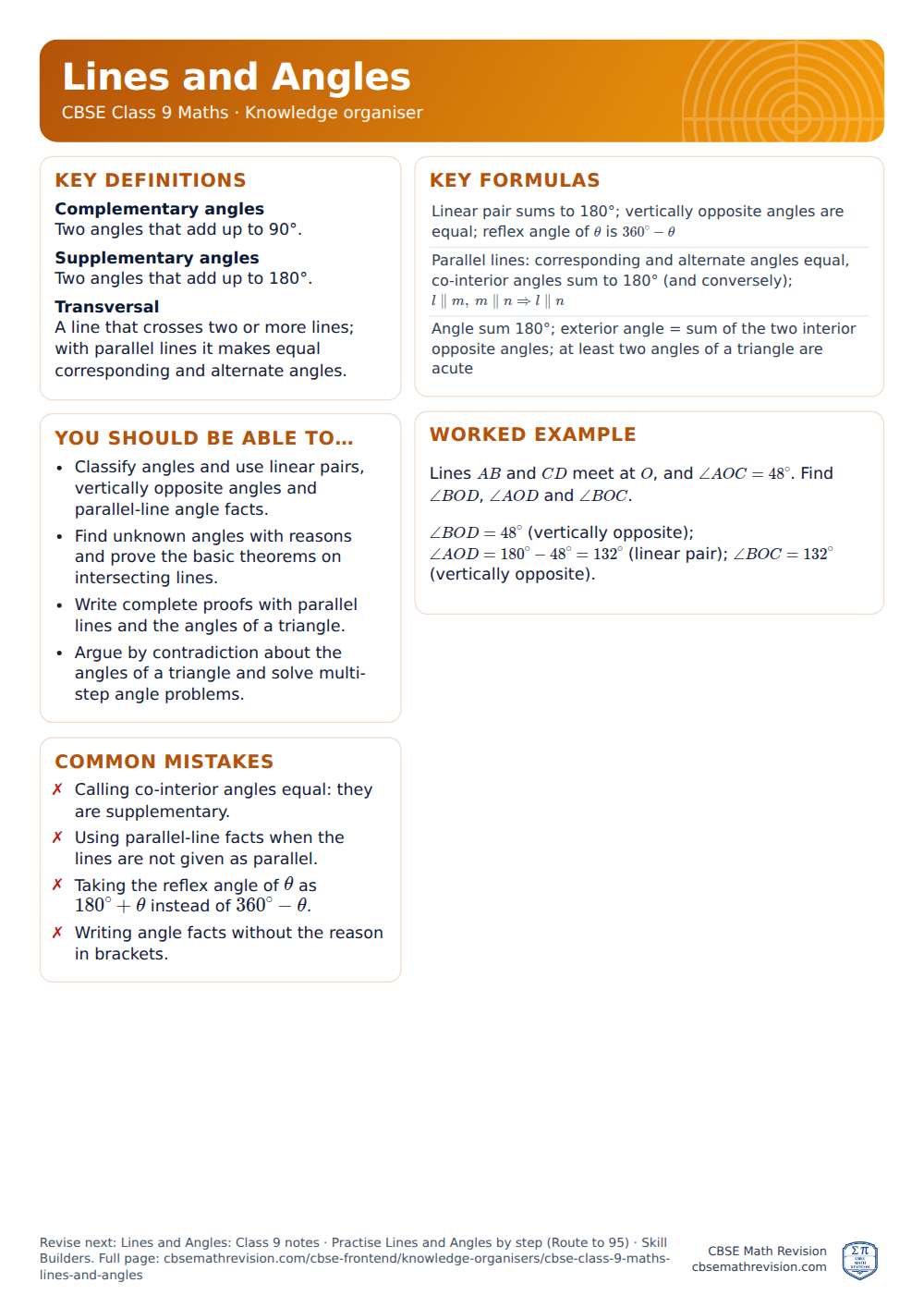

Lines and Angles knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Lines and Angles knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
