Coordinate Geometry: CBSE Class 9 Maths knowledge organiser

Coordinate Geometry for CBSE Class 9 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Origin
The point O(0,0) where the x-axis and y-axis meet.
Coordinates
(x,y): the distances of a point from the y-axis and the x-axis, with signs.
Quadrant
One of the four regions the axes divide the plane into.

Key formulas

Quadrants I to IV: (+,+), (−,+), (−,−), (+,−); on the x-axis y=0, on the y-axis x=0
DistanceAB=(x2−x1)2+(y2−y1)2; OP=x2+y2
Mid-point(x1+x22, y1+y22)
Parallelogram: diagonals share a mid-point; equidistant point P: PA2=PB2

Worked example

Find the distance between A(−1,3) and B(5,−5).

AB=62+(−8)2=100=10.

Common mistakes

  • Writing (y,x) instead of (x,y), or reading the ordinate as the distance from the y−axis.
  • Squaring a negative difference wrongly: (−8)2=64, not −64.
  • Stopping at 52 instead of simplifying to 213, or "simplifying" a2+b2 to a+b.
  • Forgetting the second value when an equation such as (a−5)2=9 gives a−5=±3.

You should be able to…

  • Place and read points, name the quadrant and use the distance and mid-point formulas in one step.
  • Find unknown coordinates from a distance or a mid-point and test triangles for right angles or equal sides.
  • Write complete answers that classify quadrilaterals and triangles from coordinates, and solve map-style case studies.
  • Handle equidistance conditions, equilateral triangles and proofs in coordinates.

Coordinate Geometry in CBSE Class 9

Coordinate Geometry is Chapter 6 of the Class 9 course, in the Coordinate Geometry unit. The unit carries 4 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 8 hours to master it.

Our Class 9 notes on it are in 5 parts: The Cartesian plane; Quadrants and the axes; Distance formula; Mid-point of a segment; Using the formulas in geometry. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 50 board-style questions with step marks. By sub-topic: Mid-point of a segment (9), Using coordinates in geometry (9), Quadrants (8), Points on the axes (8), Distance formula (8) and Equidistant points (8). By CBSE question type: 16 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 10 very short answer (2 marks each), 11 short answer (3 marks each), 5 case study (4 marks each) and 6 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 15 questions; Exam standard, 20 questions; Full marks on long answers, 6 questions; 95+ stretch (HOTS), 9 questions.

The printable sheet

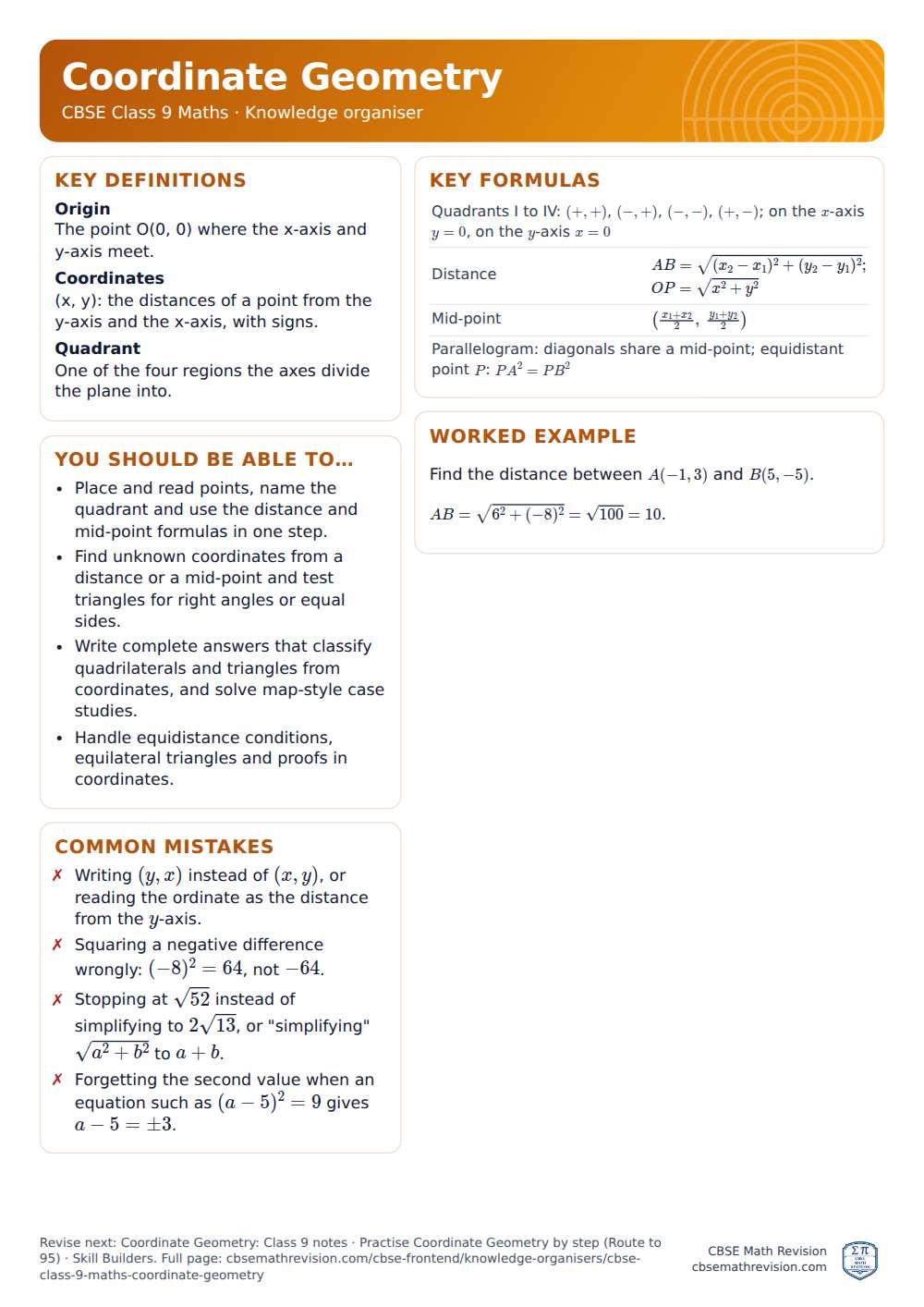

Coordinate Geometry knowledge organiser for CBSE Class 9 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Coordinate Geometry knowledge organiser (CBSE Class 9 Maths), A4. Download the PDF.
