Vector Algebra: CBSE Class 12 Maths knowledge organiser

Vector Algebra for CBSE Class 12 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Vector
A quantity with magnitude and direction.
Scalar product
a⋅b=|a||b|cos⁡θ, a number; zero for perpendicular vectors.
Vector product
a×b, a vector perpendicular to both, of magnitude |a||b|sin⁡θ.

Key formulas

Magnitude; unit vector|a→|=x2+y2+z2, a^=a→|a→|
Direction cosinesl=x|r→|, m=y|r→|, n=z|r→|, l2+m2+n2=1
PQ→(x2−x1)i^+(y2−y1)j^+(z2−z1)k^
Section, m:n internal; externalmb→+na→m+n; mb→−na→m−n
Dot producta→⋅b→=|a→||b→|cos⁡θ=a1b1+a2b2+a3b3
Perpendicular; projection of a→ on b→a→⋅b→=0; a→⋅b→|b→|
Cross producta→×b→=|a→||b→|sin⁡θn^=|i^j^k^a1a2a3b1b2b3|
Area: parallelogram; triangle|a→×b→|; 12|a→×b→|
Parallelogram from its diagonals12|d→1×d→2|
Parallel a→×b→=0→; a→×b→=−b→×a→; i^×j^=k^, j^×k^=i^, k^×i^=j^

Worked example

|a→|=2, |b→|=3, a→⋅b→=3: |a→−b→|2=4+9−6=7, so |a→−b→|=7; cos⁡θ=12, θ=π3.

Common mistakes

  • Middle term of the cross-product determinant: it is −j^(a1b3−a3b1).
  • Using ma→+nb→m+n (weights swapped) in the section formula.
  • Giving only one sign for a unit perpendicular vector, or the wrong one when a condition (acute/obtuse with an axis) is given.
  • Confusing the scalar projection (a number) with the projection vector.

You should be able to…

  • Find magnitudes, unit vectors, direction cosines, section-formula points and simple dot/cross products.
  • Use dot and cross products for angles, projections, perpendicularity, collinearity and areas at 2- and 3-mark level.
  • Write complete multi-step vector solutions (triangle and parallelogram problems, case studies with forces or displacements).
  • Work with vectors given only by magnitudes and angles, minimisation and perpendicular-component arguments.

Vector Algebra in CBSE Class 12

Vector Algebra is Chapter 10 of the Class 12 course, in the Vectors and Three-Dimensional Geometry unit with Three Dimensional Geometry. The unit carries 14 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 12 hours to master it.

Our Class 12 notes on it are in 4 parts: Basics; Section formula; Scalar (dot) product; Vector (cross) product. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 49 board-style questions with step marks. By sub-topic: Vector (cross) product and area (13), Scalar (dot) product and projection (12), Vectors: magnitude, direction and types (8), Direction cosines and direction ratios (8) and Addition, scalar multiple and section formula (8). By CBSE question type: 15 multiple choice (1 mark each), 4 assertion-reason (1 mark each), 13 very short answer (2 marks each), 10 short answer (3 marks each), 3 case study (4 marks each) and 4 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 6 questions; Board standard, 23 questions; Full marks on long answers, 4 questions; 95+ stretch (HOTS), 6 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on vector algebra. No sign-in needed.

The direction cosines of the vector 2i^−j^+2k^ are

Choose your answer · keys 1–4

The printable sheet

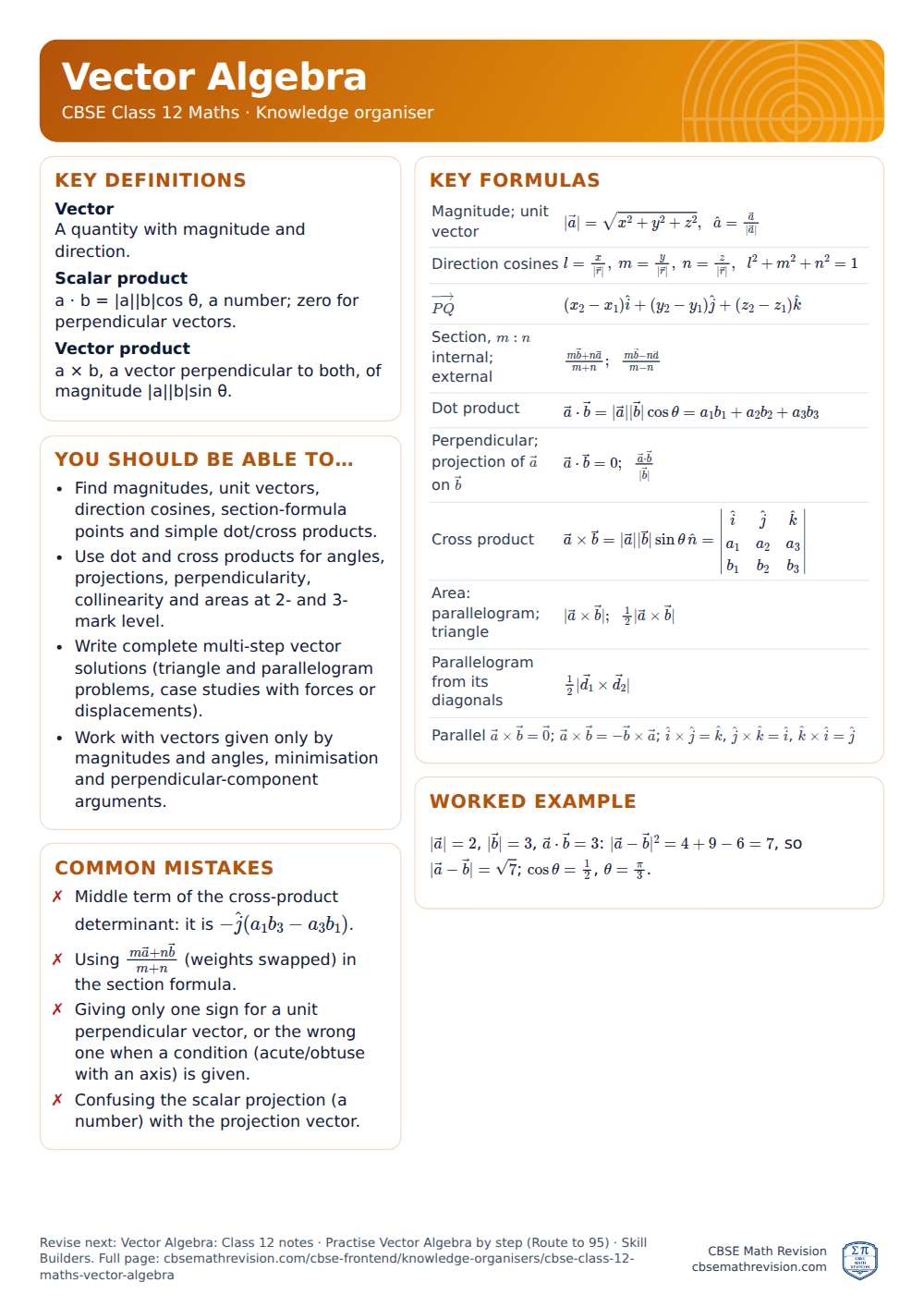

Vector Algebra knowledge organiser for CBSE Class 12 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Vector Algebra knowledge organiser (CBSE Class 12 Maths), A4. Download the PDF.
