Three Dimensional Geometry: CBSE Class 12 Maths knowledge organiser

Three Dimensional Geometry for CBSE Class 12 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Direction cosines
The cosines of the angles a line makes with the x-, y- and z-axes; l2+m2+n2=1.
Direction ratios
Any numbers proportional to the direction cosines.
Skew lines
Lines in space that are neither parallel nor intersecting.

Key formulas

DCs from direction ratios a,b,cl=aa2+b2+c2, …
Line through a→ parallel to b→r→=a→+λb→; x−x1a=y−y1b=z−z1c
Through two pointsr→=a→+λ(b→−a→); x−x1x2−x1=y−y1y2−y1=z−z1z2−z1
Angle between linescos⁡θ=|a1a2+b1b2+c1c2|a12+b12+c12a22+b22+c22
Perpendicular; parallela1a2+b1b2+c1c2=0; a1a2=b1b2=c1c2
Shortest distance, skew linesd=|(b→1×b→2)⋅(a→2−a→1)||b→1×b→2|
Parallel linesd=|b→×(a→2−a→1)||b→|
Lines intersect ⇔ shortest distance = 0. Foot of perpendicular from P: general point Q on the line with PQ→⋅b→=0

Worked example

Line through (1,0,−1) and (3,2,0): x−12=y2=z+11; direction cosines 23,23,13.

Common mistakes

  • Reading direction ratios before putting the line in standard form (signs and coefficients of x,y,z).
  • Omitting the modulus in the angle formula (the angle between lines is taken acute) or in the distance formula.
  • Using the skew-line formula for parallel lines (it gives 0/0).
  • Declaring lines intersecting after matching only two coordinates, always check the third.

You should be able to…

  • Find direction cosines/ratios and write vector and Cartesian equations of a line through a point or two points.
  • Convert between forms, find angles between lines, test parallel/perpendicular/coincident lines and distances between parallel lines.
  • Score full marks on 5-mark shortest-distance, intersection and foot-of-perpendicular/image questions and on 3-D case studies.
  • Solve common-perpendicular, image-of-a-point and multi-part triangle problems in 3-D.

Three Dimensional Geometry in CBSE Class 12

Three Dimensional Geometry is Chapter 11 of the Class 12 course, in the Vectors and Three-Dimensional Geometry unit with Vector Algebra. The unit carries 14 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 14 hours to master it.

Our Class 12 notes on it are in 4 parts: Direction cosines and ratios; Equation of a line; Angle between two lines; Shortest distance. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 46 board-style questions with step marks. By sub-topic: Equation of a line (vector and Cartesian) (12), Skew lines and shortest distance (10), Direction cosines and direction ratios of a line (8), Angle between two lines (8) and Perpendicular from a point to a line (8). By CBSE question type: 12 multiple choice (1 mark each), 3 assertion-reason (1 mark each), 11 very short answer (2 marks each), 11 short answer (3 marks each), 3 case study (4 marks each) and 6 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 5 questions; Board standard, 24 questions; Full marks on long answers, 5 questions; 95+ stretch (HOTS), 6 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on three dimensional geometry. No sign-in needed.

The lines with direction ratios 2,−1,4 and −4,2,μ are parallel when μ equals

Choose your answer · keys 1–4

The printable sheet

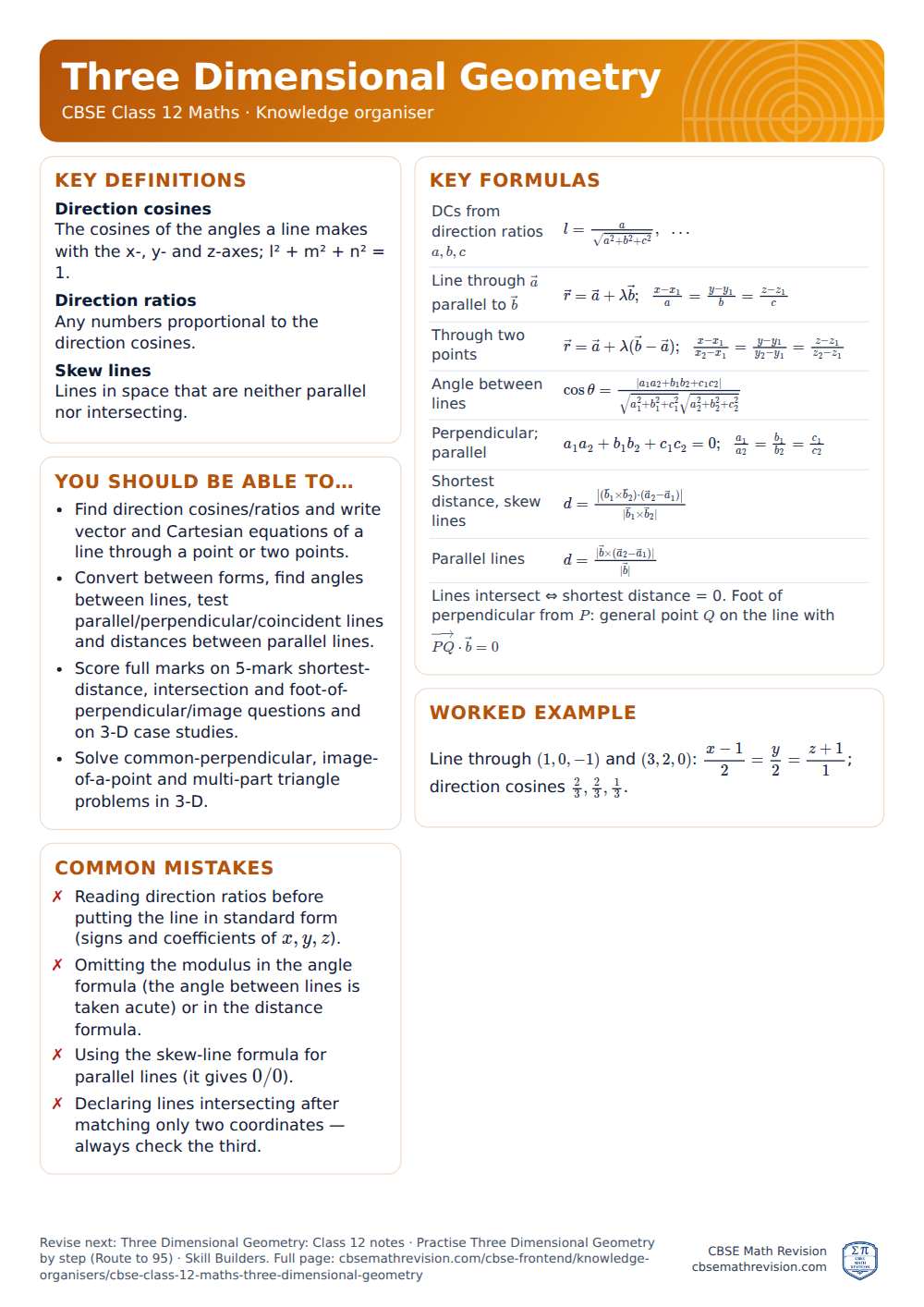

Three Dimensional Geometry knowledge organiser for CBSE Class 12 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Three Dimensional Geometry knowledge organiser (CBSE Class 12 Maths), A4. Download the PDF.
