Application of Integrals: CBSE Class 12 Maths knowledge organiser

Application of Integrals for CBSE Class 12 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Area under a curve
The area between y=f(x), the x-axis and two vertical lines: ∫abydx.
Vertical strip
A thin rectangle of width dx used to build up the area.
Region
The part of the plane bounded by the given curves and lines; sketch it first.

Key formulas

Area∫ab|y|dx, ∫cd|x|dy
Circle x2+y2=a2: area πa2; ellipse x2a2+y2b2=1: area πab
Region between a curve and a line: integrate (upper − lower) between the intersection points

Worked example

Area bounded by y2=4x and x=1: by symmetry, 2∫012xdx=83 sq units.

Common mistakes

  • Reporting a negative or zero “area” because part of the curve is below the axis.
  • Forgetting to double when using symmetry, or doubling a region that is not symmetric.
  • Wrong limits: using the intercepts of the line instead of the intersection points with the curve.
  • Integrating y with respect to y (mixing up vertical and horizontal strips).

You should be able to…

  • Find the area under a curve with vertical strips and the areas of circles and ellipses using symmetry.
  • Choose vertical or horizontal strips and find the area between a curve and a line from their intersection points.
  • Write full-marks 5-mark area answers and case studies: sketch, shading, limits, integral and sq units.
  • Handle regions that need two integrals, parts of circles and ellipses and area questions where symmetry is only partial.

Application of Integrals in CBSE Class 12

Application of Integrals is Chapter 8 of the Class 12 course, in the Calculus unit with Continuity and Differentiability, Application of Derivatives, Integrals and Differential Equations. The unit carries 35 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 12 hours to master it.

Our Class 12 notes on it are in 3 parts: What is in the syllabus; Key results; Method (write these steps in the exam). This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 47 board-style questions with step marks. By sub-topic: Region bounded by a curve and a line (11), Area under a curve (vertical strips) (10), Areas of circles and ellipses (10), Area using horizontal strips (8) and Applications and modelling (8). By CBSE question type: 13 multiple choice (1 mark each), 3 assertion-reason (1 mark each), 10 very short answer (2 marks each), 12 short answer (3 marks each), 3 case study (4 marks each) and 6 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 15 questions; Board standard, 12 questions; Full marks on long answers, 5 questions; 95+ stretch (HOTS), 7 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on application of integrals. No sign-in needed.

The area of the region between the curve y=4−x2 and the x-axis is

Choose your answer · keys 1–4

The printable sheet

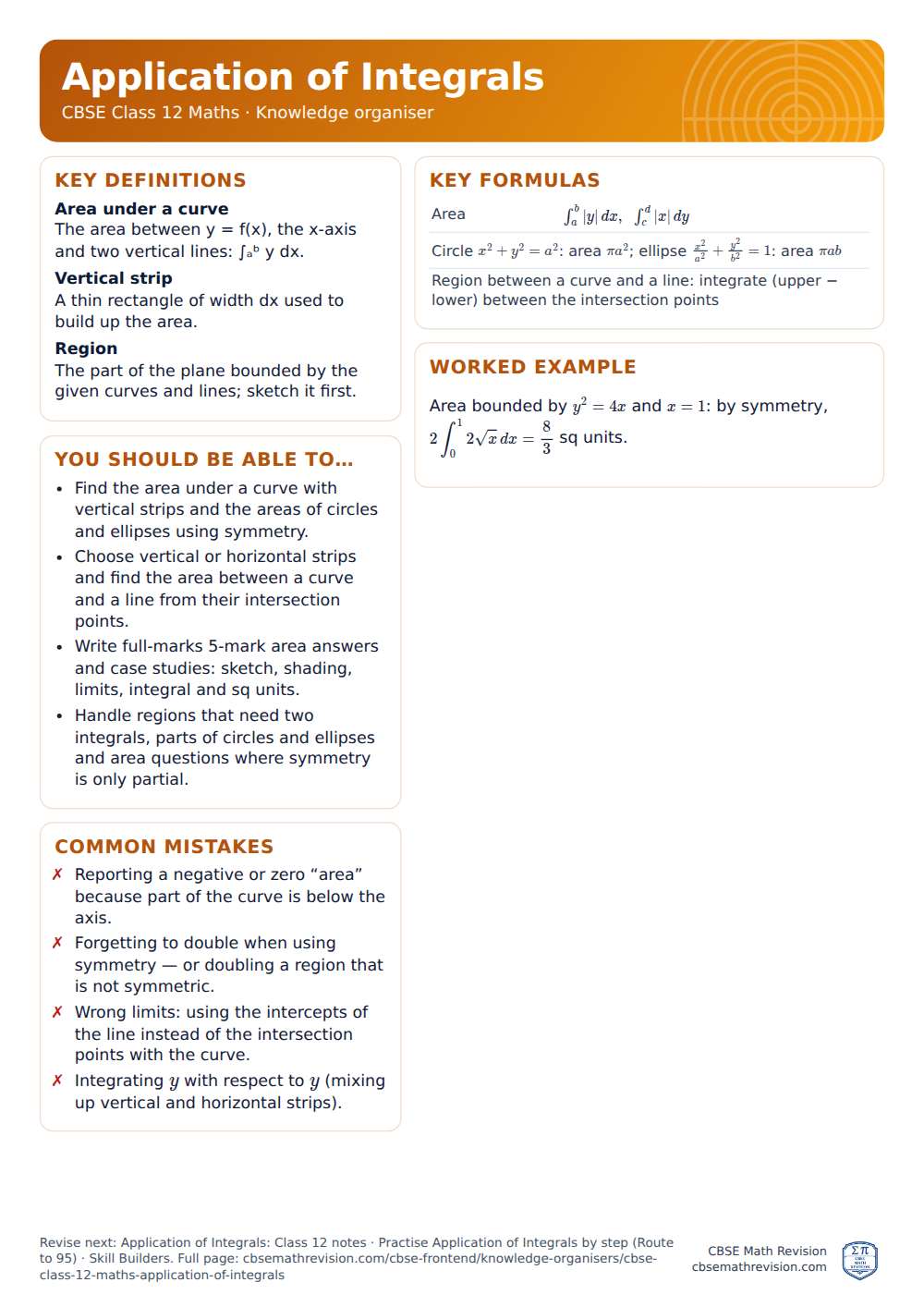

Application of Integrals knowledge organiser for CBSE Class 12 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Application of Integrals knowledge organiser (CBSE Class 12 Maths), A4. Download the PDF.
