Introduction to Three Dimensional Geometry: CBSE Class 11 Maths knowledge organiser

Introduction to Three Dimensional Geometry for CBSE Class 11 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Octant
One of the eight regions the three coordinate planes divide space into.
Coordinates in space
(x,y,z): signed distances from the yz-, zx- and xy-planes.
Distance in 3D
(x2−x1)2+(y2−y1)2+(z2−z1)2.

Key formulas

Octants I–IV z>0, V–VIII z<0; on the x-axis (x,0,0), in the xy-plane (x,y,0)
PQ(x2−x1)2+(y2−y1)2+(z2−z1)2

Worked example

Find the distance between (2,−1,3) and (−2,1,3).

16+4+0=20=25.

Common mistakes

  • Forgetting the z term in the distance formula.
  • Distance from the x−axis taken as |a|: it is b2+c2.
  • Confusing "on the x−axis" (x,0,0) with "in the xy−plane" (x,y,0).
  • Claiming collinearity from two equal distances instead of AB+BC=AC.

You should be able to…

  • Place points in octants and on axes and planes, and use the distance formula.
  • Find unknown coordinates from distances and test triangles and collinearity.
  • Classify quadrilaterals in space and handle loci with the distance formula.
  • Find distances from axes and loci of equidistant points.

Introduction to Three Dimensional Geometry in CBSE Class 11

Introduction to Three Dimensional Geometry is Chapter 11 of the Class 11 course, in the Coordinate Geometry unit with Straight Lines and Conic Sections. The unit carries 12 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 5 hours to master it.

Our Class 11 notes on it are in 4 parts: Axes, planes and octants; Coordinates of a point; Distance between two points; Using the distance formula. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 32 board-style questions with step marks. By sub-topic: Axes, planes and octants (8), Coordinates of a point (8), Distance between two points (8) and Using the distance formula (8). By CBSE question type: 10 multiple choice (1 mark each), 2 assertion-reason (1 mark each), 8 very short answer (2 marks each), 8 short answer (3 marks each), 2 case study (4 marks each) and 2 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 5 questions; Exam standard, 6 questions; Full marks on long answers, 3 questions; 95+ stretch (HOTS), 3 questions.

The printable sheet

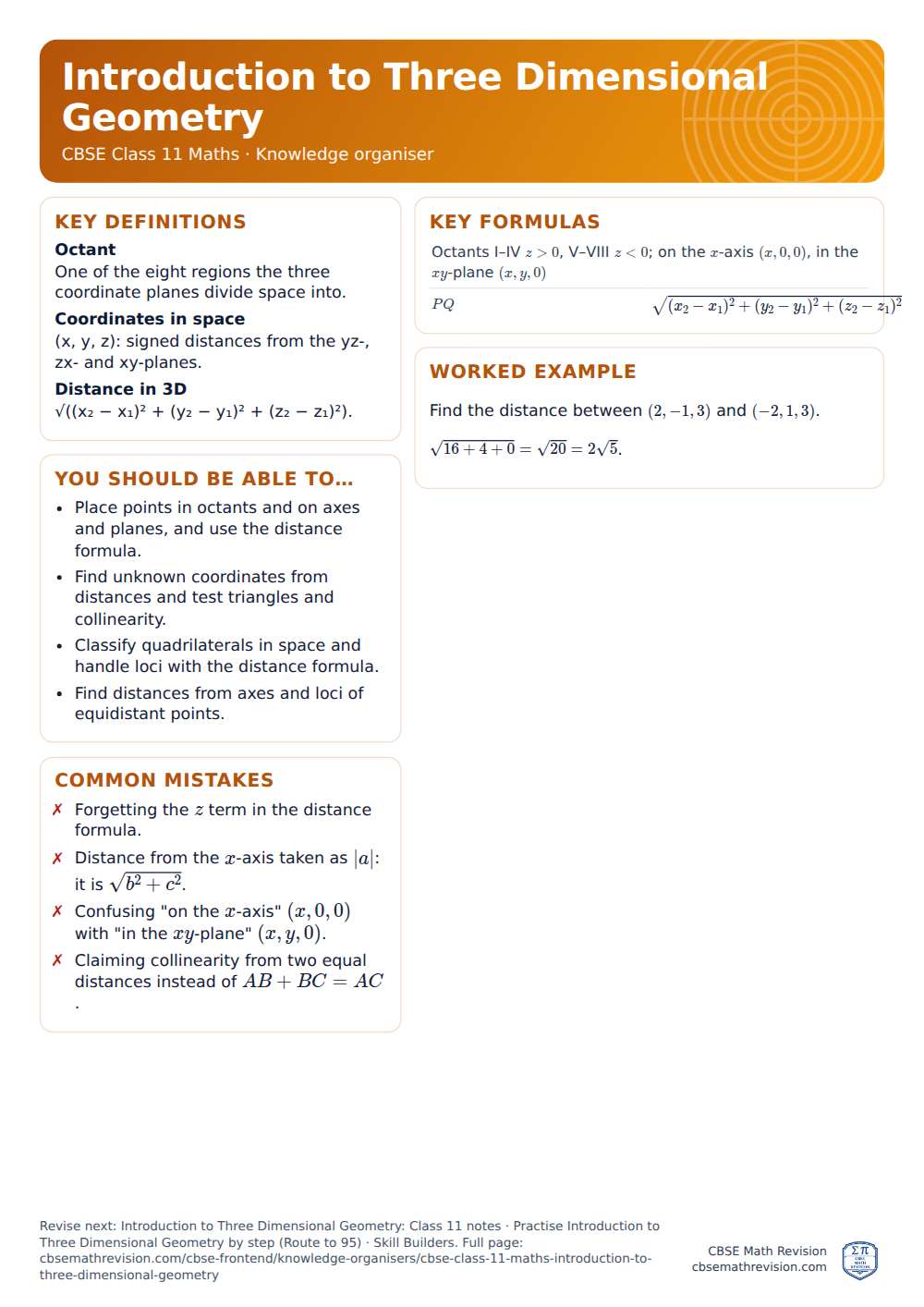

Introduction to Three Dimensional Geometry knowledge organiser for CBSE Class 11 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Introduction to Three Dimensional Geometry knowledge organiser (CBSE Class 11 Maths), A4. Download the PDF.
