Trigonometric Functions: CBSE Class 11 Maths knowledge organiser

Trigonometric Functions for CBSE Class 11 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Radian measure
An angle in radians is arc length ÷ radius; π radians =180∘.
Periodic function
A function that repeats: sin⁡x and cos⁡x have period 2π.
Compound angle formula
Expands expressions such as sin⁡(x+y) and cos⁡(x+y).

Key formulas

Radians; arcπ rad=180∘; l=rθ
Pythagoreansin2⁡x+cos2⁡x=1, 1+tan2⁡x=sec2⁡x
Compound, sinsin⁡(x±y)=sin⁡xcos⁡y±cos⁡xsin⁡y
Compound, coscos⁡(x±y)=cos⁡xcos⁡y∓sin⁡xsin⁡y
Compound, tantan⁡(x±y)=tan⁡x±tan⁡y1∓tan⁡xtan⁡y
Doublesin⁡2x=2sin⁡xcos⁡x, cos⁡2x=1−2sin2⁡x=2cos2⁡x−1
Double, tantan⁡2x=2tan⁡x1−tan2⁡x
Triplesin⁡3x=3sin⁡x−4sin3⁡x, cos⁡3x=4cos3⁡x−3cos⁡x
sin⁡A+sin⁡Bsin⁡A+sin⁡B=2sin⁡A+B2cos⁡A−B2
cos⁡A+cos⁡Bcos⁡A+cos⁡B=2cos⁡A+B2cos⁡A−B2
cos⁡A−cos⁡Bcos⁡A−cos⁡B=−2sin⁡A+B2sin⁡A−B2
Signs: All, Sin, Tan, Cos in quadrants I to IV; sin,cos period 2π, tan period π

Worked example

Convert 225∘ to radians.

225×π180=5π4.

Common mistakes

  • Using degrees in l=rθ: θ must be in radians.
  • Sign of a ratio in quadrants II to IV taken from the acute-angle value only.
  • sin⁡(x+y)=sin⁡x+sin⁡y (false), or cos⁡(x+y) with a plus sign between the products.
  • cos⁡2x=2cos⁡x−1: the cosine is squared.

You should be able to…

  • Convert between degrees and radians, use arc length, and find signs and values of trigonometric functions.
  • Find all ratios from one, reduce large angles, and use compound-angle and double-angle formulae.
  • Prove identities with sum-to-product and multiple-angle formulae and answer applied case studies.
  • Find exact values such as tan⁡(5π12) and handle chains of identities.

Trigonometric Functions in CBSE Class 11

Trigonometric Functions is Chapter 3 of the Class 11 course, in the Sets and Functions unit with Sets and Relations and Functions. The unit carries 23 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 18 hours to master it.

Our Class 11 notes on it are in 5 parts: Angles in degrees and radians; Trigonometric functions of any angle; Domains, ranges and graphs; Compound angles; Multiple angles and sum-to-product. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 40 board-style questions with step marks. By sub-topic: Angles in degrees and radians (8), Trigonometric functions of any angle (8), Domains, ranges and graphs (8), Compound angles (8) and Multiple angles and sum-to-product (8). By CBSE question type: 15 multiple choice (1 mark each), 1 assertion-reason (1 mark), 10 very short answer (2 marks each), 10 short answer (3 marks each), 2 case study (4 marks each) and 2 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 5 questions; Exam standard, 6 questions; Full marks on long answers, 3 questions; 95+ stretch (HOTS), 3 questions.

The printable sheet

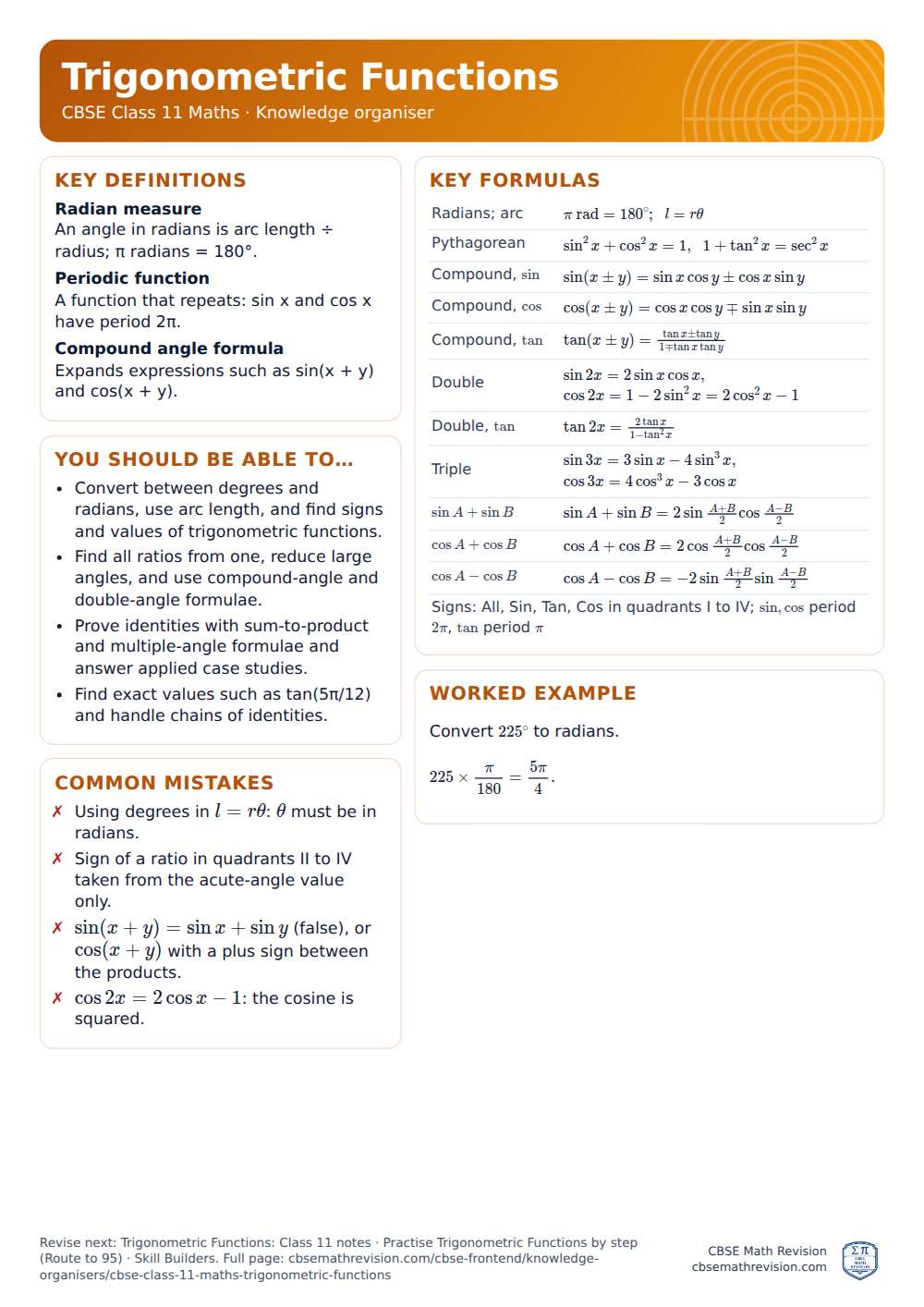

Trigonometric Functions knowledge organiser for CBSE Class 11 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Trigonometric Functions knowledge organiser (CBSE Class 11 Maths), A4. Download the PDF.
