Straight Lines: CBSE Class 11 Maths knowledge organiser

Straight Lines for CBSE Class 11 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Slope
m=tan⁡θ, the steepness of a line; m=y2−y1x2−x1.
Intercept
Where a line crosses an axis.
Perpendicular distance
The shortest distance from a point to a line.

Key formulas

Slope; angle betweenm=tan⁡θ=y2−y1x2−x1; tan⁡ϕ=|m2−m11+m1m2|
Parallel m1=m2; perpendicular m1m2=−1y−y1=m(x−x1), y=mx+c, xa+yb=1
Point to line|Ax1+By1+C|A2+B2
Parallel lines Ax+By+C1=0, Ax+By+C2=0 (same A,B)|C1−C2|A2+B2

Worked example

Find the equation of the line through (2,−1) parallel to 3x−y+4=0.

Slope 3: y+1=3(x−2), i.e. 3x−y−7=0.

Common mistakes

  • Slope written as x2−x1y2−y1, or with the points in a different order on top and bottom.
  • Forgetting the modulus in the angle and distance formulae.
  • Distance between parallel lines without first making the coefficients of x and y the same.
  • Slope of Ax+By+C=0 taken as AB instead of −AB.

You should be able to…

  • Find slopes, test parallel and perpendicular lines and write simple line equations.
  • Use every form of the line equation, test collinearity and find distances from a point to a line.
  • Combine line equations, distances and areas in triangle problems.
  • Find lines at a given angle, reflections of points and distances between parallel lines.

Straight Lines in CBSE Class 11

Straight Lines is Chapter 9 of the Class 11 course, in the Coordinate Geometry unit with Conic Sections and Introduction to Three Dimensional Geometry. The unit carries 12 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 11 hours to master it.

Our Class 11 notes on it are in 4 parts: Slope; Angle between two lines; Forms of the equation of a line; Distances. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the exam tips.

When the sheet is learnt, practise: the chapter page has 32 board-style questions with step marks. By sub-topic: Slope (8), Forms of the equation of a line (8), Distances (8) and Angle between two lines (8). By CBSE question type: 7 multiple choice (1 mark each), 1 assertion-reason (1 mark), 10 very short answer (2 marks each), 10 short answer (3 marks each), 2 case study (4 marks each) and 2 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 5 questions; Exam standard, 6 questions; Full marks on long answers, 3 questions; 95+ stretch (HOTS), 3 questions.

The printable sheet

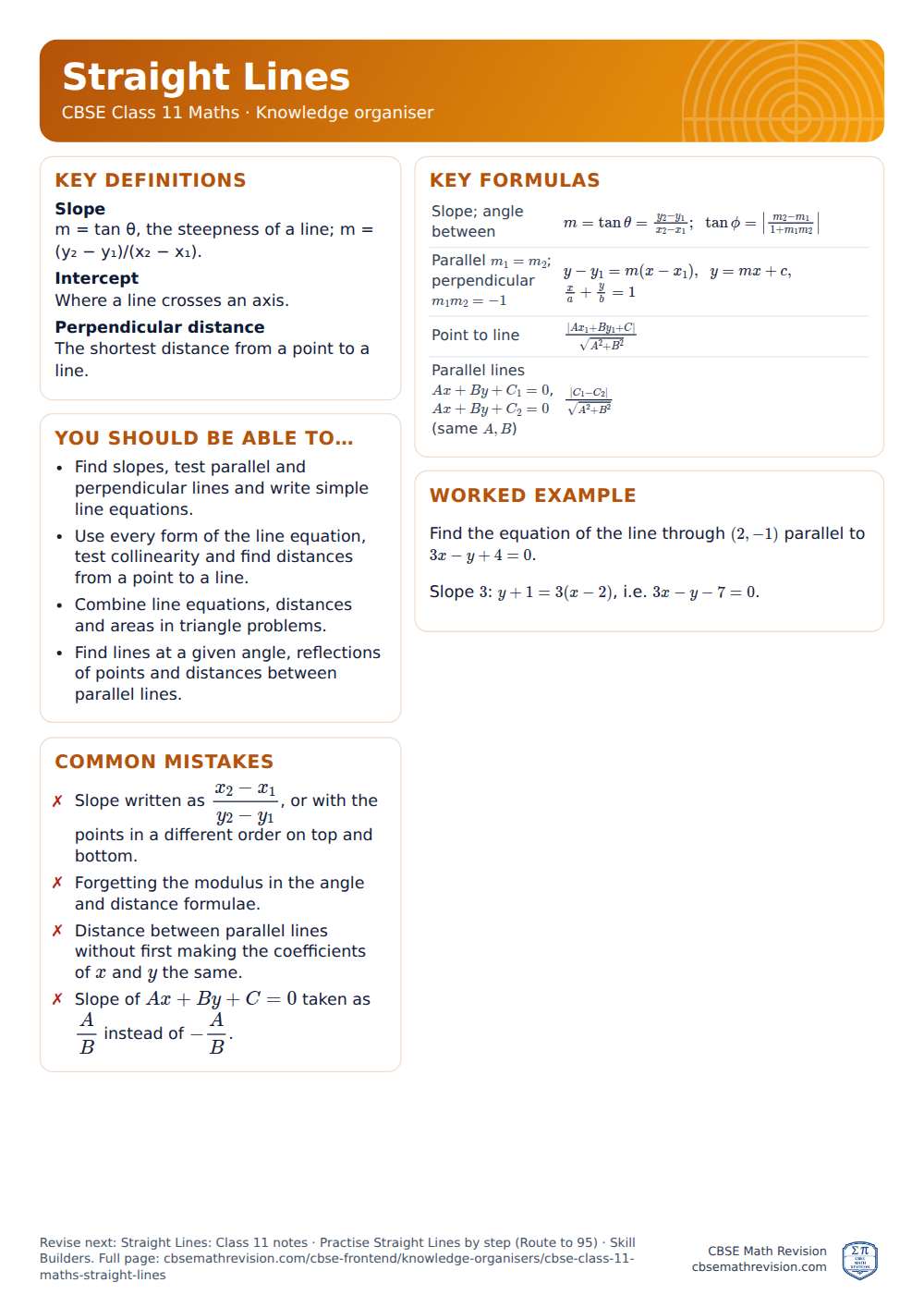

Straight Lines knowledge organiser for CBSE Class 11 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Straight Lines knowledge organiser (CBSE Class 11 Maths), A4. Download the PDF.
