CBSE Math Revision
Knowledge organisers

Introduction to Trigonometry: CBSE Class 10 Maths knowledge organiser

Introduction to Trigonometry for CBSE Class 10 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Trigonometric ratio
A ratio of two sides of a right-angled triangle for an acute angle, such as sin⁡A= opposite/hypotenuse.
Trigonometric identity
An equation true for all angles where it is defined, such as sin2⁡A+cos2⁡A=1.
Complementary angle ratios
sin⁡(90∘−A)=cos⁡A and tan⁡(90∘−A)=cot⁡A.

Key formulas

Ratios (right △)sin⁡A=PH, cos⁡A=BH, tan⁡A=PB=sin⁡Acos⁡A
ReciprocalscosecA=1sin⁡A, sec⁡A=1cos⁡A, cot⁡A=1tan⁡A
Identitiessin2⁡A+cos2⁡A=1, 1+tan2⁡A=sec2⁡A, 1+cot2⁡A=cosec2A
0∘,30∘,45∘,60∘,90∘sin: 0,12,12,32,1; cos: 1,32,12,12,0
tan at the same angles0, 13, 1, 3, not defined

Worked example

If 4tan⁡θ=3, find sin⁡θ+cos⁡θsin⁡θ−cos⁡θ.

tan⁡θ=34. Take opposite =3k, adjacent =4k, hypotenuse =5k. Then sin⁡θ=35, cos⁡θ=45, and the expression =7/5−1/5=−7. (Quicker: divide numerator and denominator by cos⁡θ to get tan⁡θ+1tan⁡θ−1=7/4−1/4=−7.)

Common mistakes

  • Writing sin⁡A as sin×A, or sin2⁡A as sin⁡A2.
  • Assuming sin⁡(A+B)=sin⁡A+sin⁡B, check with A=B=30∘: sin⁡60∘≠1.
  • Mixing up opposite and adjacent sides when the angle is at a different vertex.
  • Working on both sides of an identity at once as if it were an equation. Start from one side (usually the more complicated one) and reach the other.

You should be able to…

  • Find all six trigonometric ratios from one given ratio and know the values for 0∘, 30∘, 45∘, 60∘ and 90∘.
  • Evaluate expressions with standard angles and prove the common identities by working from one side.
  • Write long answers that combine ratios, standard values and identities, with every substitution shown.
  • Prove the tougher identities and solve problems where the ratio is given in terms of letters such as a and b.

Introduction to Trigonometry in CBSE Class 10

Introduction to Trigonometry is Chapter 8 of the Class 10 course, in the Trigonometry unit with Some Applications of Trigonometry. The unit carries 12 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 12 hours to master it.

Our Class 10 notes on it are in 3 parts: Trigonometric ratios; Ratios of specific angles; Trigonometric identities. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 38 board-style questions with step marks. By sub-topic: Trigonometric identities (16), Ratios of specific angles (12) and Trigonometric ratios (10). By CBSE question type: 10 multiple choice (1 mark each), 4 assertion-reason (1 mark each), 8 very short answer (2 marks each), 8 short answer (3 marks each), 3 case study (4 marks each) and 5 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 6 questions; Board standard, 18 questions; Full marks on long answers, 7 questions; 95+ stretch (HOTS), 7 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on introduction to trigonometry. No sign-in needed.

If cosecθ−cot⁡θ=14, then cosecθ equals

Choose your answer · keys 1–4

The printable sheet

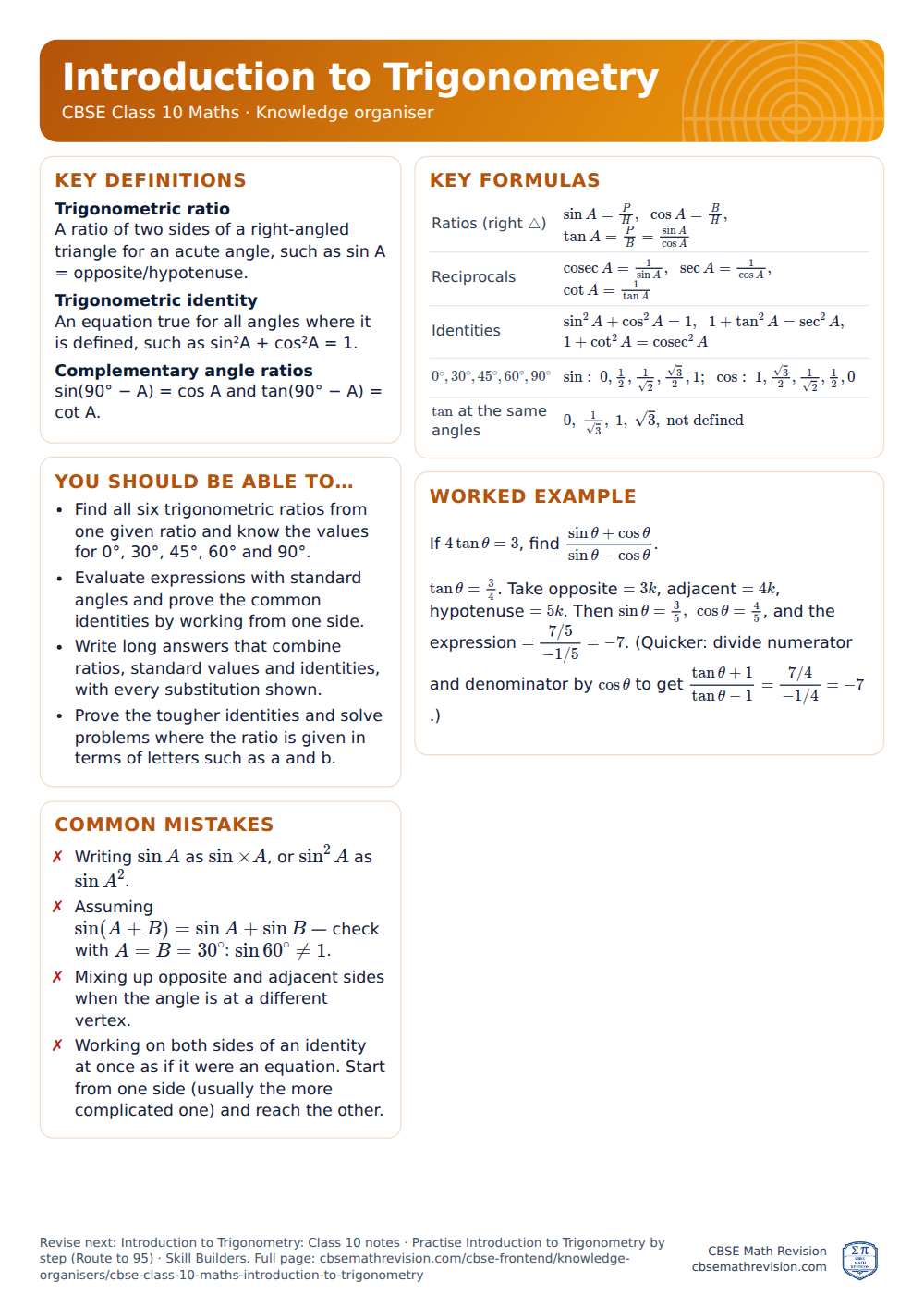

Introduction to Trigonometry knowledge organiser for CBSE Class 10 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Introduction to Trigonometry knowledge organiser (CBSE Class 10 Maths), A4. Download the PDF.
