Triangles: CBSE Class 10 Maths knowledge organiser

Triangles for CBSE Class 10 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Similar figures
Same shape but not necessarily the same size: equal angles and sides in the same ratio.
Basic Proportionality Theorem
A line parallel to one side of a triangle divides the other two sides in the same ratio.
Criteria for similarity
AA, SSS and SAS similarity show two triangles are similar.

Key formulas

Basic Proportionality Theorem: if DE∥BC in △ABCADDB=AEEC
Converse: if a line divides two sides in the same ratio, it is parallel to the third side
Similar triangles (AA, SSS, SAS): corresponding angles equal, corresponding sides in the same ratio
Pythagoras (right angle at B)AC2=AB2+BC2

Worked example

DE∥BC, AD=5, DB=3, AC=12. Then AEAC=ADAB=58⇒AE=7.5.

Common mistakes

  • Writing ADDB=DEBC, wrong; use ADAB=DEBC.
  • Matching vertices in the wrong order, leading to wrong side ratios.
  • Using SAS similarity with an angle that is not between the two sides.
  • Claiming two rhombuses/rectangles are similar from sides alone.

You should be able to…

  • You know when figures are similar and can use the Basic Proportionality Theorem to find missing lengths.
  • Prove triangles similar using AA, SAS or SSS with a reason for every step, and use the converse of BPT.
  • Write the BPT proof and the long 'prove that' answers the board asks, with figure, given, to prove, construction and proof.
  • Handle the hard proofs: altitudes, parallelograms with extended sides, and algebraic BPT problems.

Triangles in CBSE Class 10

Triangles is Chapter 6 of the Class 10 course, in the Geometry unit with Circles. The unit carries 15 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 14 hours to master it.

Our Class 10 notes on it are in 4 parts: Similar figures; Basic Proportionality Theorem (BPT / Thales); Criteria for similarity of triangles; Useful consequences. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 46 board-style questions with step marks. By sub-topic: Criteria for similarity of triangles (17), Basic Proportionality Theorem and its converse (13), Similar figures (8) and Applications of similarity (8). By CBSE question type: 13 multiple choice (1 mark each), 4 assertion-reason (1 mark each), 11 very short answer (2 marks each), 9 short answer (3 marks each), 3 case study (4 marks each) and 6 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 15 questions; Board standard, 14 questions; Full marks on long answers, 6 questions; 95+ stretch (HOTS), 5 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on triangles. No sign-in needed.

△ABC∼△DEF with AB=4 cm, DE=6 cm, EF=9 cm and FD=12 cm. The perimeter of △ABC is

Choose your answer · keys 1–4

The printable sheet

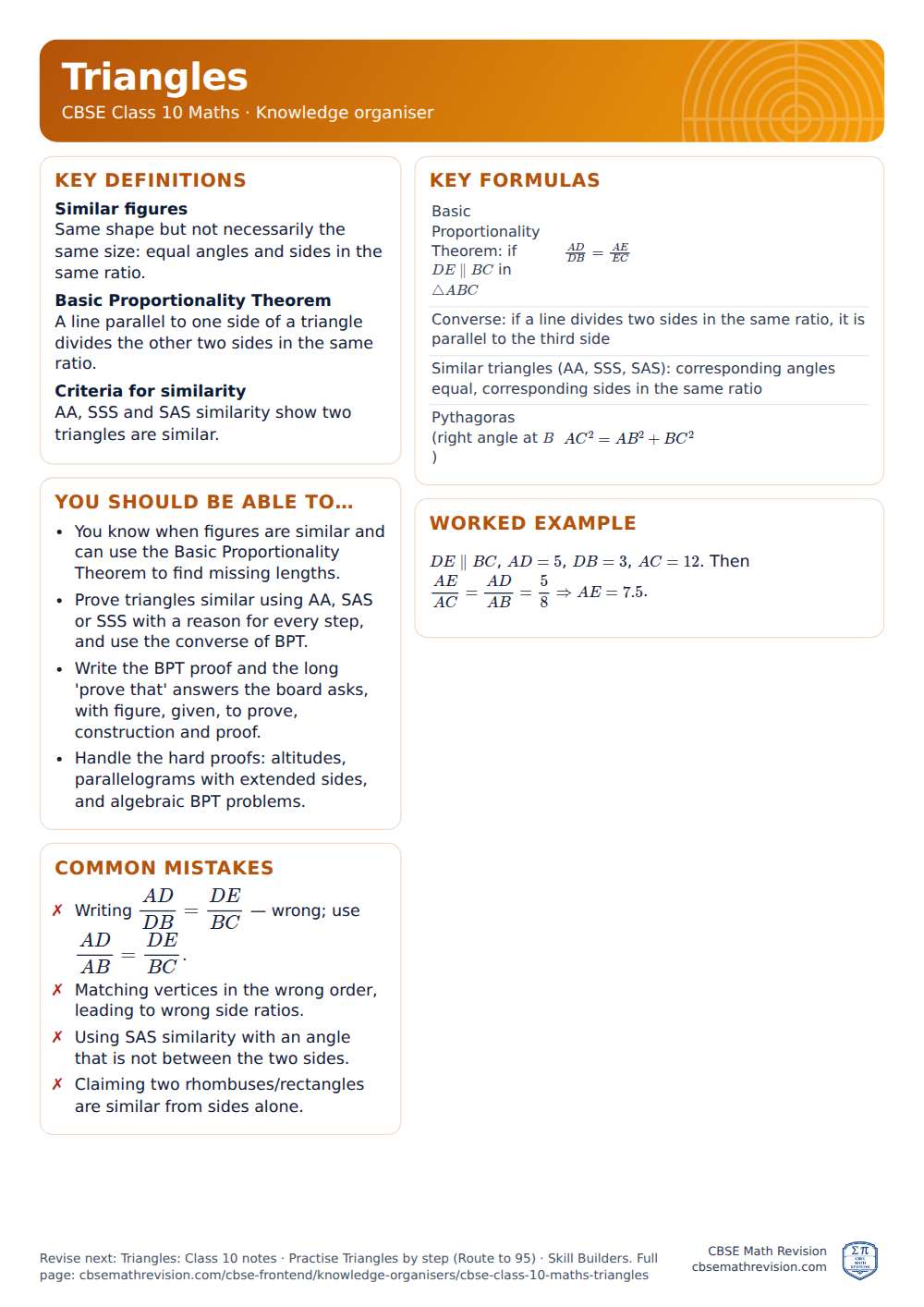

Triangles knowledge organiser for CBSE Class 10 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Triangles knowledge organiser (CBSE Class 10 Maths), A4. Download the PDF.
