Coordinate Geometry: CBSE Class 10 Maths knowledge organiser

Coordinate Geometry for CBSE Class 10 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Distance formula
The length between two points, from Pythagoras.
Section formula
Gives the point that divides a line segment in a given ratio m : n.
Mid-point
The point halfway along a segment: the average of the coordinates.

Key formulas

DistancePQ=(x2−x1)2+(y2−y1)2; OP=x2+y2
Section formula, ratio m:n (internal)(mx2+nx1m+n, my2+ny1m+n)
Midpoint(x1+x22, y1+y22)
Ratio in which a line or axis divides AB: take k:1 and solve for k

Worked example

Distance between (2,−1) and (−4,7): 36+64=10.

Common mistakes

  • Swapping m1 and m2 in the section formula, m1 multiplies the coordinates of the second point.
  • Forgetting the square root, or squaring a negative difference incorrectly.
  • Concluding “square” from equal sides alone (a rhombus also has equal sides); check the diagonals.
  • Leaving the final distance unsimplified (72=62).

You should be able to…

  • Find the distance between two points and the mid-point of a segment without slips.
  • Use the section formula both ways: to find the dividing point and to find the ratio (or an unknown coordinate).
  • Prove the type of a quadrilateral or triangle from coordinates in a full, reasoned long answer.
  • Handle trisection points, points equidistant from three given points and right-angle conditions.

Coordinate Geometry in CBSE Class 10

Coordinate Geometry is Chapter 7 of the Class 10 course, in the Coordinate Geometry unit. The unit carries 6 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 9 hours to master it.

Our Class 10 notes on it are in 4 parts: Distance formula; Section formula (internal division); Mid-point formula; Identifying shapes. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 40 board-style questions with step marks. By sub-topic: Distance formula (13), Section formula (10), Applications to geometric shapes (9) and Mid-point formula (8). By CBSE question type: 12 multiple choice (1 mark each), 3 assertion-reason (1 mark each), 8 very short answer (2 marks each), 9 short answer (3 marks each), 3 case study (4 marks each) and 5 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 11 questions; Board standard, 18 questions; Full marks on long answers, 7 questions; 95+ stretch (HOTS), 4 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on coordinate geometry. No sign-in needed.

The point on the y-axis that is equidistant from (2,3) and (−4,1) is

Choose your answer · keys 1–4

The printable sheet

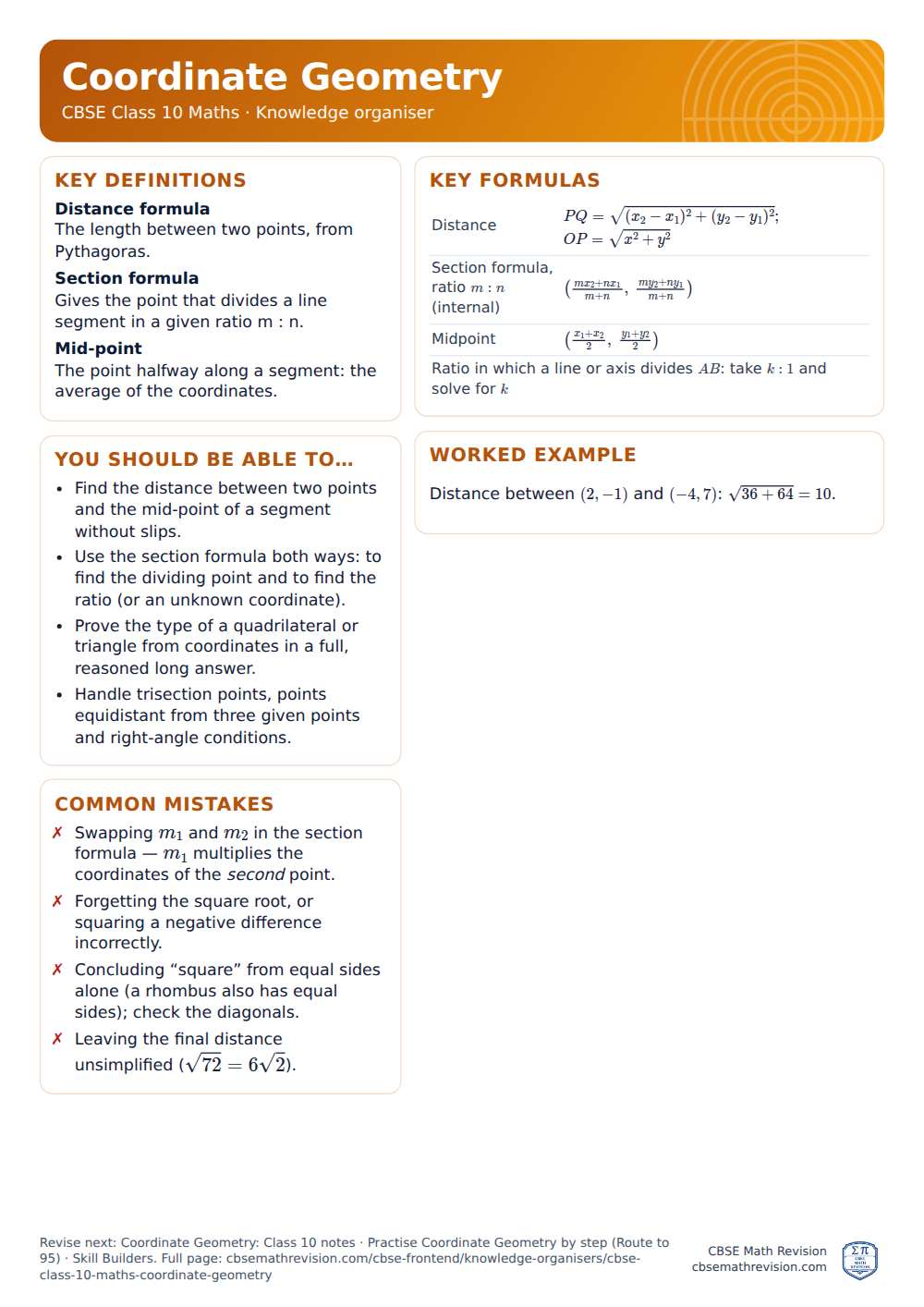

Coordinate Geometry knowledge organiser for CBSE Class 10 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Coordinate Geometry knowledge organiser (CBSE Class 10 Maths), A4. Download the PDF.
