Areas Related to Circles: CBSE Class 10 Maths knowledge organiser

Areas Related to Circles for CBSE Class 10 Maths, on one page.

Download the A4 sheet (PDF)

Key definitions

Sector
The region between two radii and an arc.
Segment
The region between a chord and its arc.
Minor and major
The minor sector or segment is the smaller one; the major is the larger one.

Key formulas

CircleC=2πr, A=πr2
Arc length; sector area (angle θ)l=θ360∘×2πr, A=θ360∘×πr2
Segmentarea=sector−12r2sin⁡θ
Segment, θ=60∘,90∘,120∘: subtract 34r2, 12r2, 34r2
Perimeter of sector; ring2r+l; π(R2−r2)
Minute hand sweeps 6∘ per minute; hour hand 0.5∘ per minute

Worked example

Find the area of a sector of angle 40∘ in a circle of radius 21 cm (π=227).

40360×227×441=19×1386=154 cm2.

Common mistakes

  • Adding the triangle to the sector instead of subtracting it to get the minor segment.
  • Using the diameter in place of the radius.
  • Forgetting the two radii when finding the perimeter of a sector.
  • Using π=3.14 when the question says 227, or rounding too early.

You should be able to…

  • Find the length of an arc and the area of a sector for any angle.
  • Find segment areas for 60∘, 90∘ and 120∘, and solve clock-hand and sector-perimeter questions.
  • Write complete long answers on shaded regions, combining sectors, triangles and squares without missing a piece.
  • Work backwards from a given area or perimeter to the radius or angle, and handle major segments.

Areas Related to Circles in CBSE Class 10

Areas Related to Circles is Chapter 11 of the Class 10 course, in the Mensuration unit with Surface Areas and Volumes. The unit carries 10 of the 80 theory marks (CBSE gives marks by unit, not by chapter). We plan about 9 hours to master it.

Our Class 10 notes on it are in 2 parts: Basic results (circle of radius r); Handy facts. This sheet keeps the essentials of each on one page; the notes have the reasoning, three worked examples and the board-exam tips.

When the sheet is learnt, practise: the chapter page has 37 board-style questions with step marks. By sub-topic: Area of a sector (19), Length of an arc (9) and Area of a segment (9). By CBSE question type: 10 multiple choice (1 mark each), 3 assertion-reason (1 mark each), 8 very short answer (2 marks each), 8 short answer (3 marks each), 3 case study (4 marks each) and 5 long answer (5 marks each). Route to 95 takes you through them in 4 steps: Secure the basics, 11 questions; Board standard, 14 questions; Full marks on long answers, 7 questions; 95+ stretch (HOTS), 5 questions.

Try it now

1 of 5

  1. Question 1 of 5
  2. Question 2 of 5
  3. Question 3 of 5
  4. Question 4 of 5
  5. Question 5 of 5

5 quick questions on areas related to circles. No sign-in needed.

An arc of a circle of radius 28 cm subtends 45∘ at the centre. Its length is (Take π=227.)

Choose your answer · keys 1–4

The printable sheet

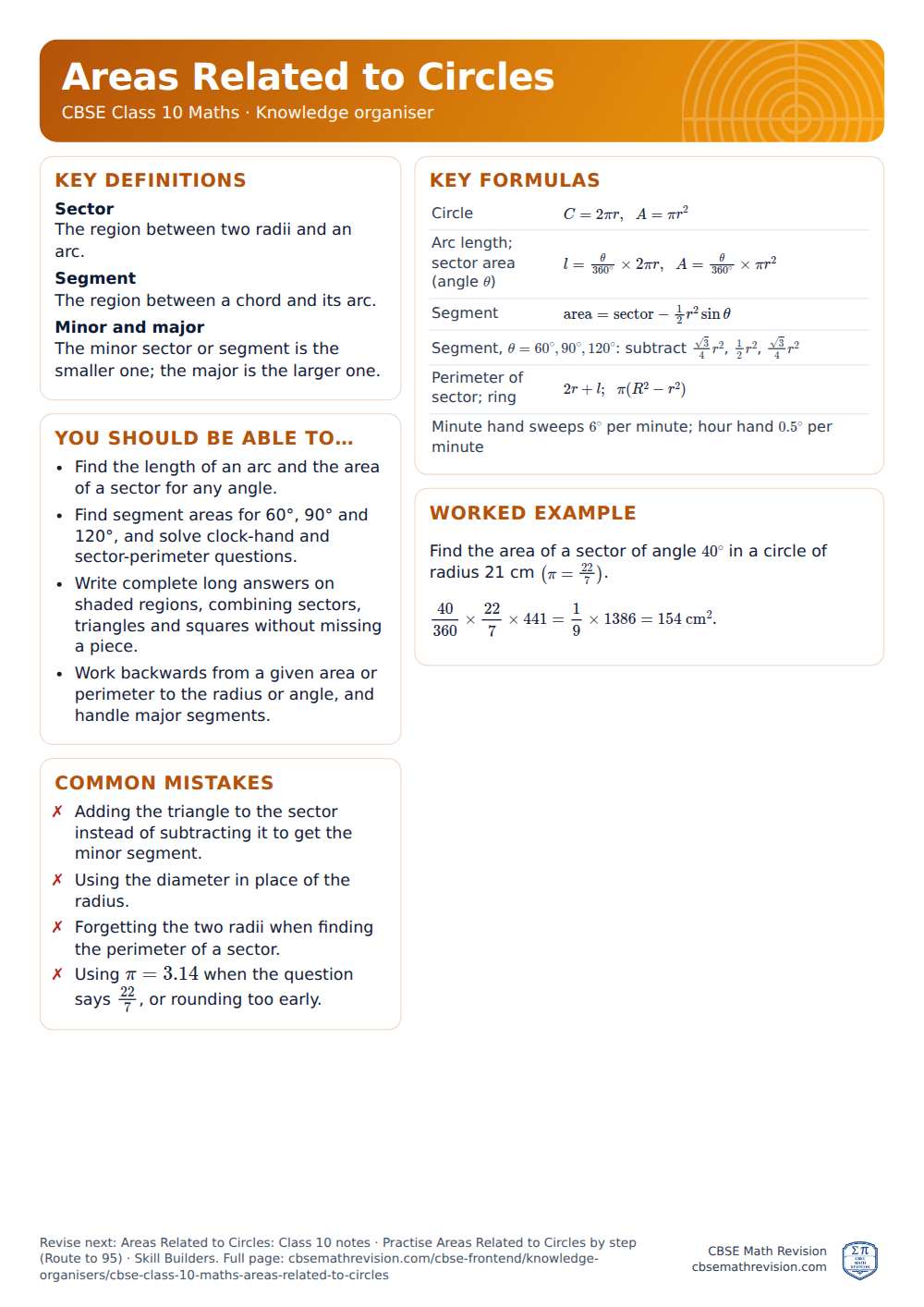

Areas Related to Circles knowledge organiser for CBSE Class 10 Maths: one A4 page of key definitions, formulas, a worked example and common mistakes
Areas Related to Circles knowledge organiser (CBSE Class 10 Maths), A4. Download the PDF.
